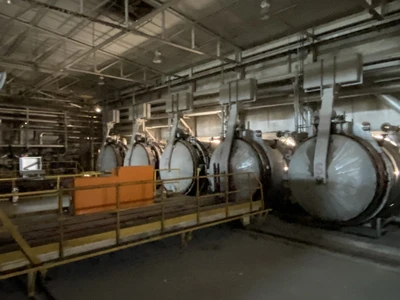

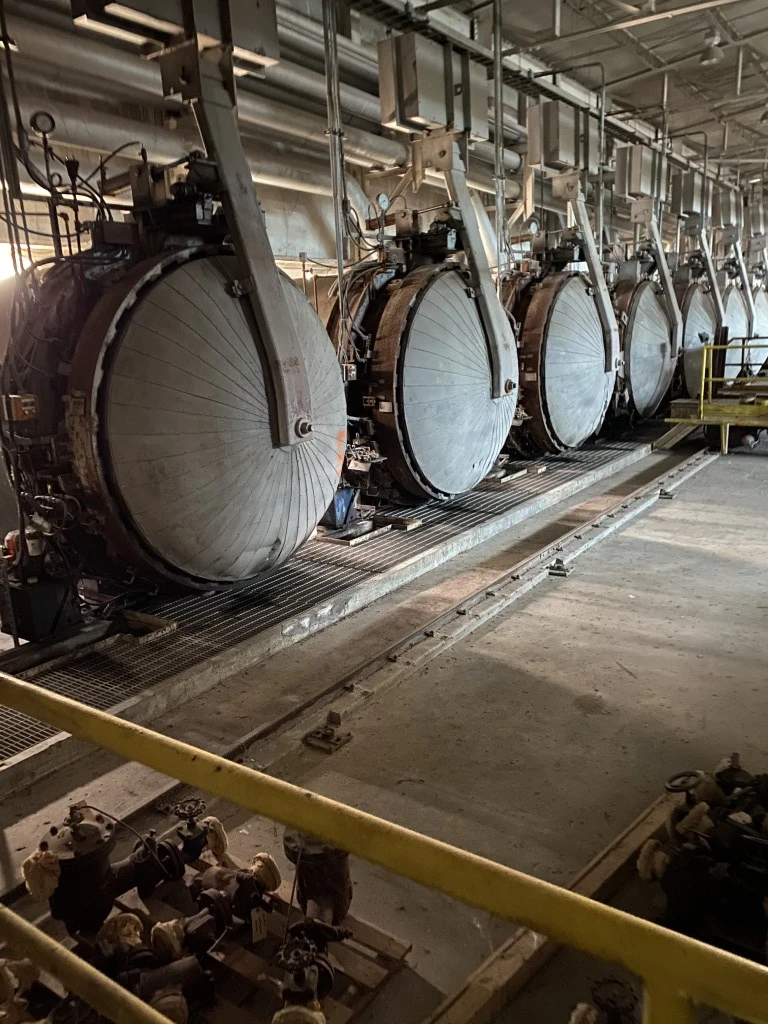

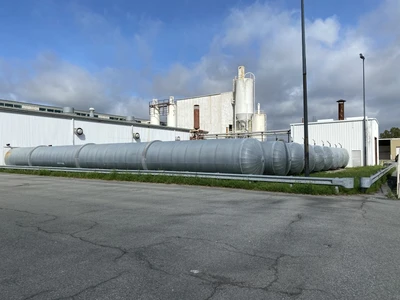

Autoclaves - 8' x 102'

Mfg: Thermal Equipment Corp
Size: 8' x 102'
MAWP: 190psi at 400F,  Design Temp: 400F
Design Press: Internal - 190 psig
          External - 15 psia vacuum
Hydrstatic Test Pressure: 285 psi
Material: Steel (SA-36)
Shell thickness: 5/8" (10 courses), 1"(1 course)
Head Thickness: .686" front,  .513 rear

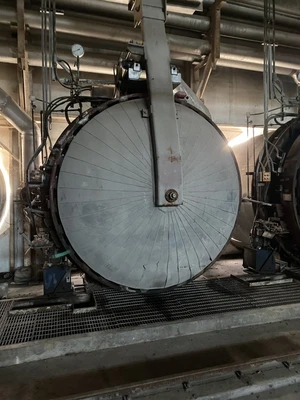

Top hinged doors, pneumatic openers
Qty: 9
Drawings on file.
Original use: AAC- Aerated concrete
Uses: AAC Autoclaved Aerated Concrete, fly ash brick, sand lime brick, slag brick, aerated concrete cut block, cement pile, heat treatment of wood and poles, wood treatment / wood preserving.

Also available: transfer bridge, rail carts

Condition: Used
