Autoclaved Aerated Concrete Equipment

Autoclaved Aerated Concrete Manufacturing Equipment
                     Complete Plant Available
Production Technology:       Hebel "Flat Cake" system
                                                 Panel Plant 8000, Block Plant 3000
Capacity:                                195,000 m3 (3 shifts, 5 d/w, 232 d/y)
Product Range:
            Blocks:                         600 x 250 x (25, 50, 150, 250, 300)
                                                300 x 200 x 610
            Reinforced Panels:      50, 100, 150, 200, 250, 300
            AAC Roof Tiles:           457 x 300 x 25
Quality Management: ASTM C 1352 (Pre-cast AAC Wall constructions)
  ASTM C 1452 (Reinforced AAC Wall constructions)

Equipment Summary:      Real Estate also Available

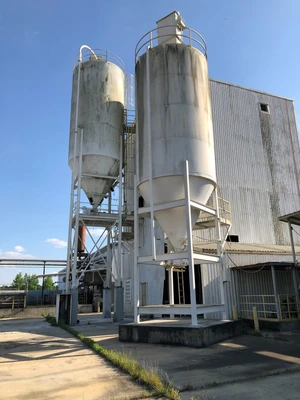

(2)Raw material silos: steel, cone bottom, 35,540 gal., dust collector, airlock

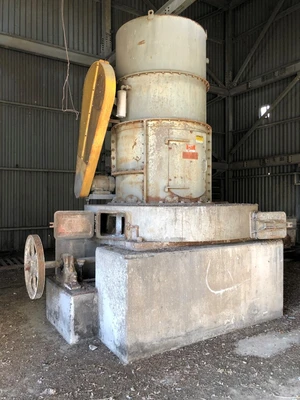

Roller Mill / Whizzer: Raymond 5047 Low Side with 4'-8" Double Whizzer Separator
Bulk sand/Gypsum hopper w/incline conveyor

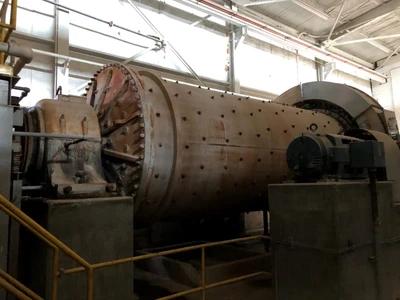

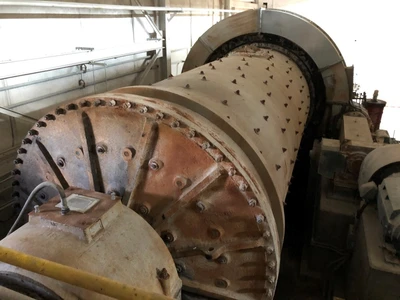

Ball Mill: Fuller-Traylor, 9' x 21'-8.5”, Grate discharge, rubber lined, 700hp
(2)Slurry Tanks with agitators
Aluminum Mix Station
Mix Plant:(2)Silos, cone bottom, steel, 75 cu meter(98 cu yd), Mixer section, Dedusting system
Batching and Weighing Equipment

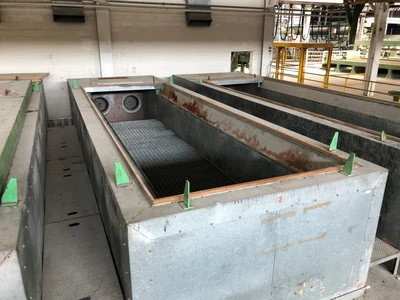

Casting Molds: 36 mobile casting molds with accessories, Gross Block size: 6,200 x 1,560 x 660mm
Casting Mold Processing Station: for cleaning/oiling of side shields, receipt of reinforcement

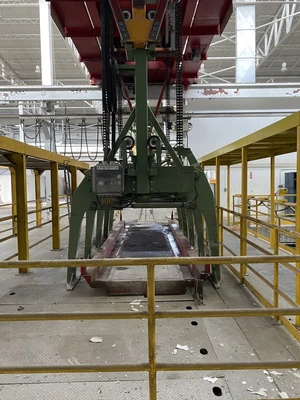

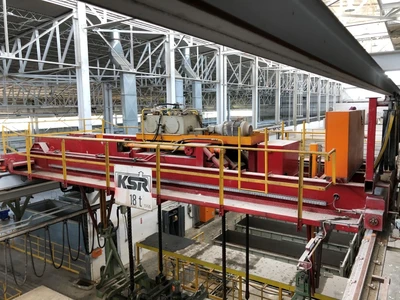

Transfer Station: Molds Bridge Crane- 18 ton, Gripper
Grates and Curing Car Transfer Crane- 1.8 ton, Gripper

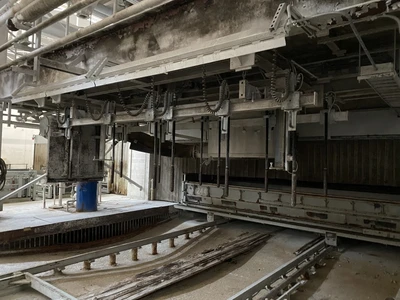

Cutting Equipment including return slurry prep
Cutting-Wire Machine with Nipple Press
Suction System - for pneumatic waste removal
Exhaust air system
Offcut Preparation: dual trough conveyors, Hopper, mix vessel, agitator, return slurry conveyance
Curing Accessories: (90)Curing Grates, (45)Curing Cars, (270)Stacking supports
Cross Cutter -Net Block dimensions: 6,000 x 1,500 x 625mm
Transportation System for Curing Cars - 6 tracks
Transportation System for Casting Molds- Curing area w/ two Traveling Platforms
Autoclave Transfer Platform – to service 9 autoclaves, 7,400 x 3,350 x 600mm

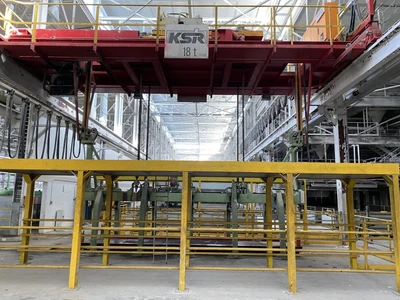

Transfer Station (unloading/packaging area)18 ton Bridge Crane, Gripper
Packing Plant- Transportation conveyors, Tilt Table, Plastic Shrink Station

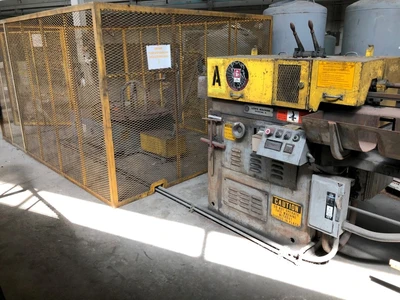

(3)Wire Straightening & Cutting Machines (with uncoilers)

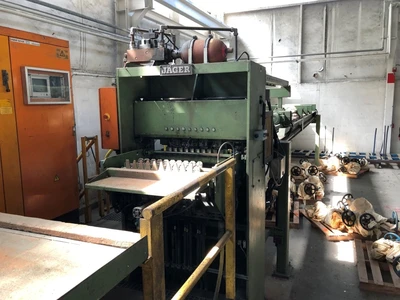

Wire Mesh Welding Machine: Jager G-RSA 6/28
Cage Welding Station
Anti-Corrosion Treatment Facility: (1)Dip Tank,  (3) Drying ovens, Overhead crane
(9) Autoclaves: 8’ x 102’, steel, 190psi@400F, 15 psi vac

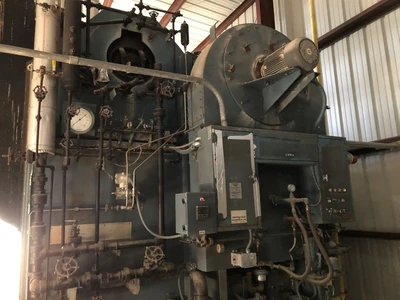

Boiler: Cleaver Brooks, D-52-RH, 500 hp, 260psi, Watertube, nat. gas / oil, Building, Deaerator, Stack

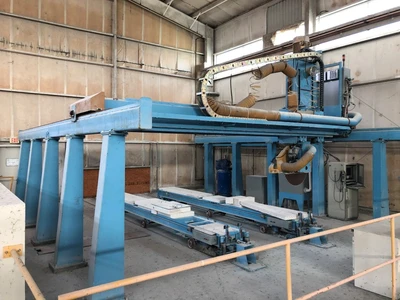

CNC Gantry Panel Saw: 5 Axis, with Dual Rail Cart System
AMM Gantry Panel Saw
Air Compressors, Receiving Tanks: 40hp I/R SSR-EP40SE, 40hp Gardner Denver EDEQHF
Lab Equipment: Hydraulic testing machines, Band saw, Cube milling machine, Hood


AAC / Lightweight Concrete Plant for sale.
