| size | 60" x 30" | 60" x 30" |
| X Travel | 60" | 1,524 mm |
| Y Travel | 28" | 711.2 mm |
| Z Travel | 24" | 609.6 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | 50 | 50 |
| Table-W | 60" | 1,524 mm |
| Table-L | 63" | 1,600.2 mm |
| # Axis | 3 | 3 |

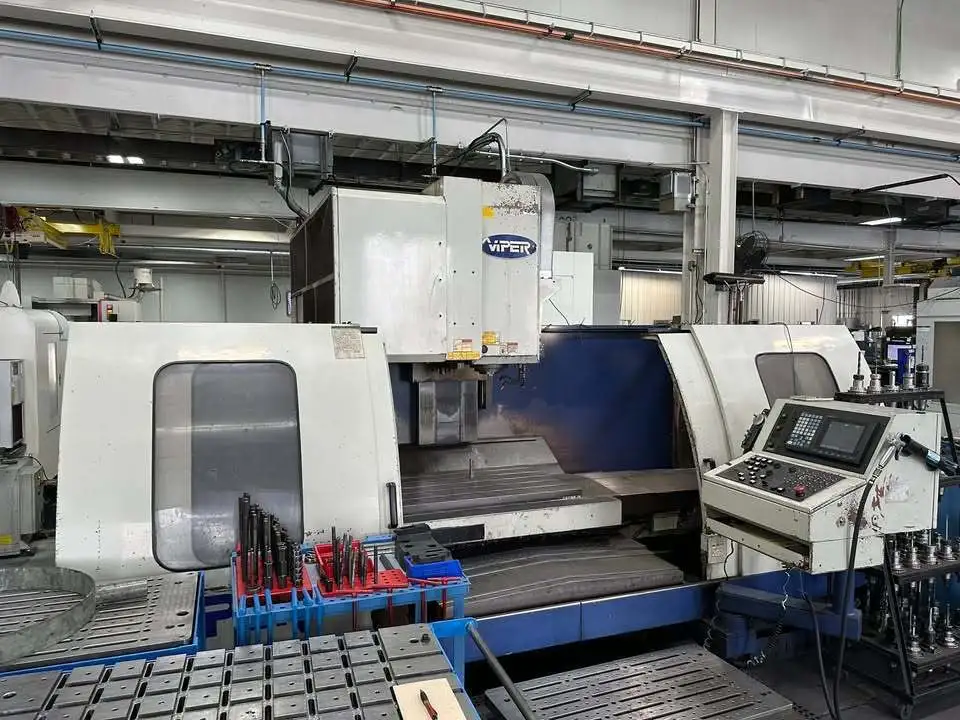

Mighty Viper HV-70A Vertical Machining Center (2000)
63'' X 30'' Table
58.5'' X-Axis Travel,
28.5'' Y-Axis Travel,
24.5 Z-Axis Travel
32-Position ATC
4,250 RPM Max. Spindle Speed
20-HP Spindle Motor
50 Taper
Mitsubishi M-60S CNC Control
Coolant System
