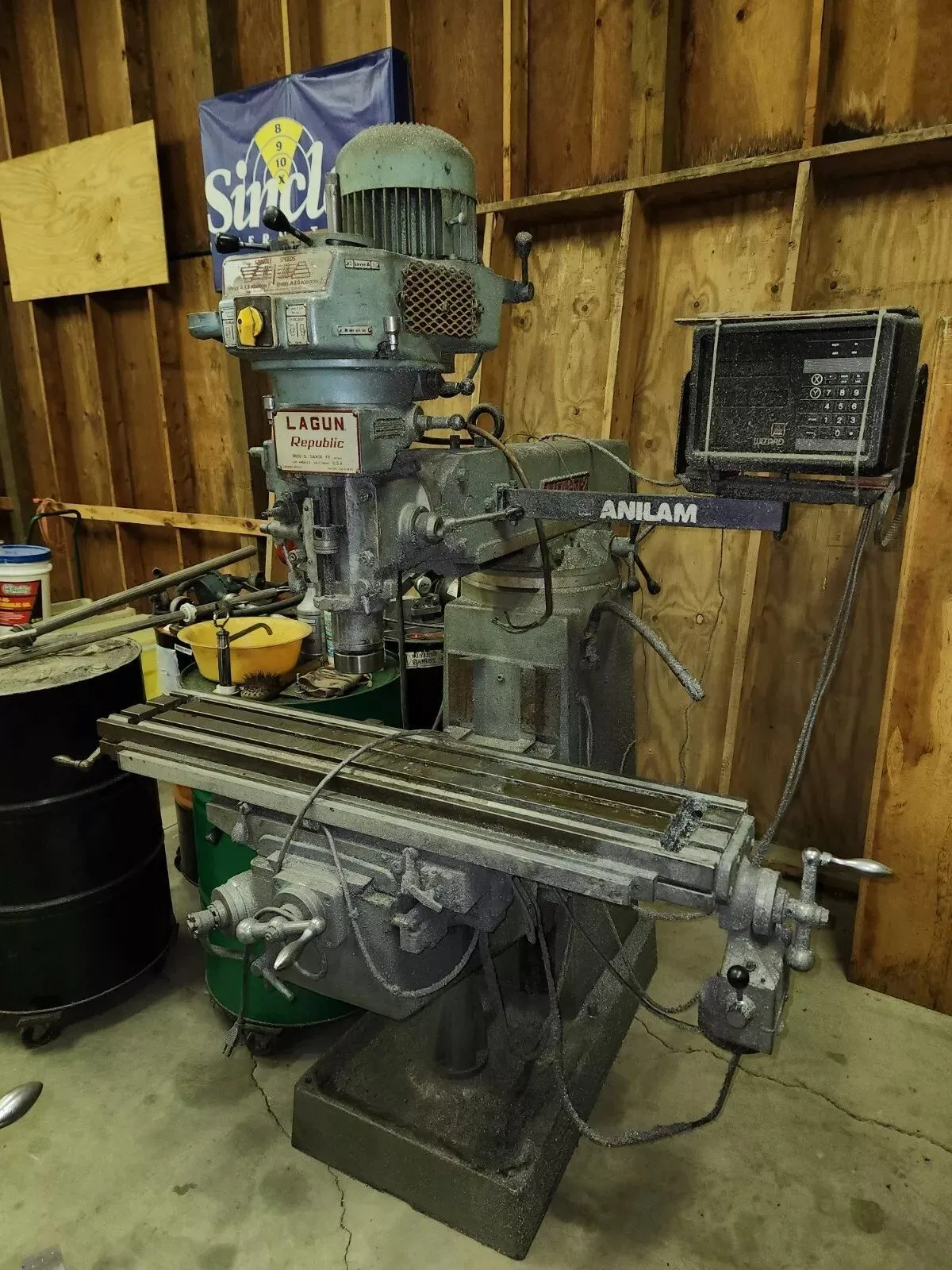

Lagun Republic FT-2 Vertical Mill with Anilam DRO and Power Feed
| Table-W | 9" | 228.6 mm |
| Table-L | 48" | 1,219.2 mm |
| Travel-Long | 30" | 762 mm |
| Travel-Cross | 16" | 406.4 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 1,720 RPM | 1,720 RPM |
2 HP Step Pulley Head,
8 High & Low range speeds from 55 to 2940,
X Axis PF,
10" x 48" Table
Internal Coolant System,
One Shot Lube,
Led Light,
Travels
Table travel X-axis, manual/ with power feed- 37.99” / 34.64” (965 / 880 mm)
Cross travel, Y axis- 15.98” (406 mm)
Knee travel, Z axis- 15.98” (406 mm)
Ram travel- 22.44” (570 mm)
Head- Electron
Main motor- 2 HP
Head swivel (Left to right)- +/- 90°
Head tilt (Front to back)- +/- 45°
Distance, spindle to column-5 to 26.96” (127 to 685 mm)
Anilam Digital Reado Out
Power Feed
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
