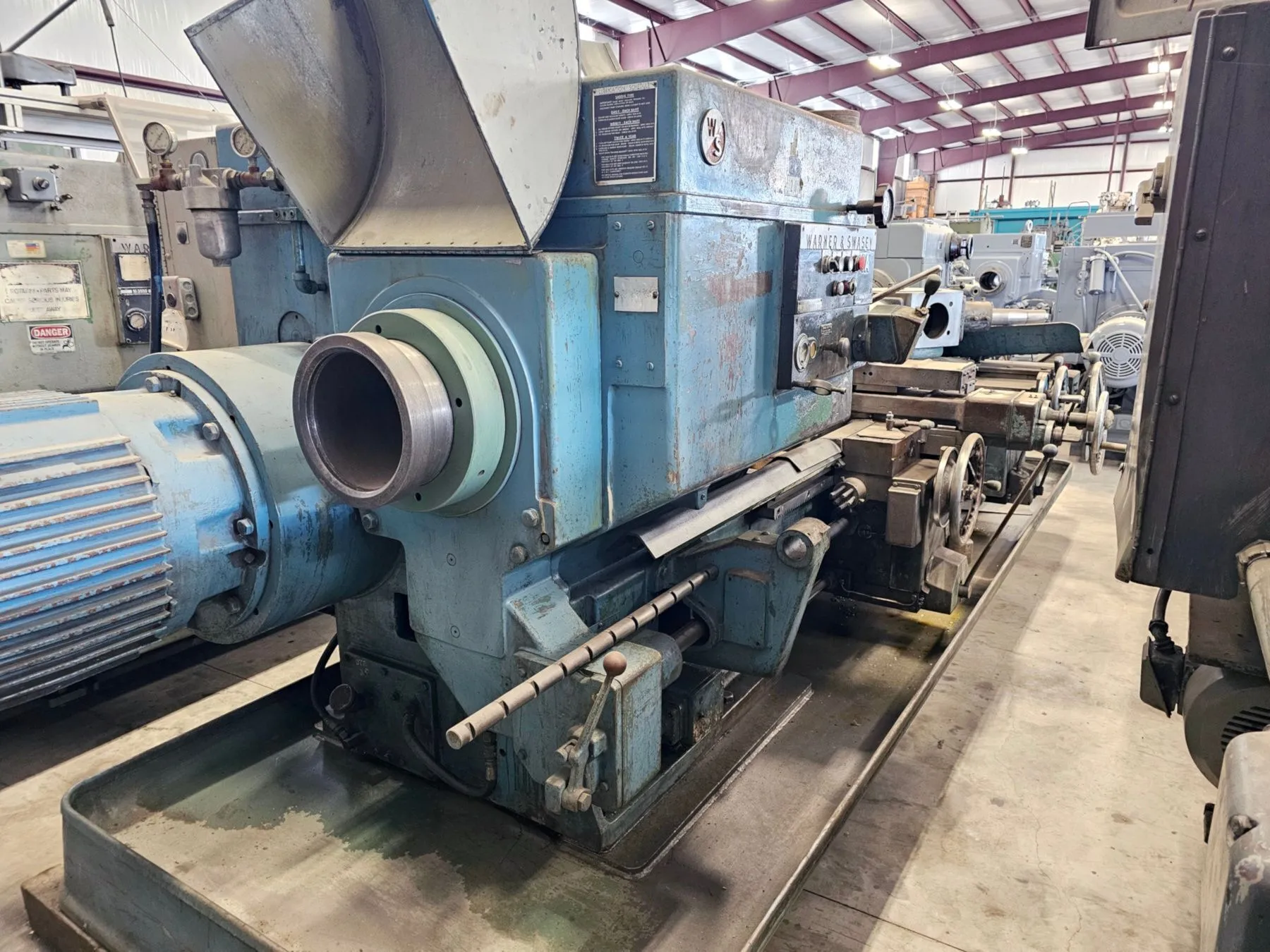

USED 1968 WARNER & SWASEY 4A - 3550

Swing Over Bed Ways.......................................28-1/4"
Swing Over Cross Slide Carriage...........................22"
Center Distance...........................................62"
Spindle Hole..............................................9-1/4"
Spindle Speeds............................................20 To 526 Rpm's
Spindle Nose..............................................A-15
Chuck Size................................................24" 4- Jaw
Feeds Cross...............................................0.005 To 0.090 I.P.R.
Feeds Long................................................0.005 To 0.167 I.P.R.
Main Motor Hp.............................................75 / 37.5
Floor Space Right To Left.................................22'
Floor Space Front To Back.................................7'
Machine Height............................................84"
Weight....................................................24,000 Lbs.
Flange Holders............................................4
Power Compound Of Front Apron.............................Yes
Tool Post 4 Way On Front..................................Yes
Rapid Traverse Front And Rear.............................Yes
Cross Sliding Rear Turret.................................Yes
Full Chip Pan And Coolant.................................Yes
Coolant Yes

Note: Machine will be cleaned and cycled.
Machine in good running order.
