Used

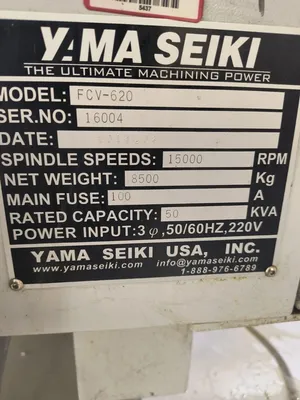

USED 2016 YAMA SEIKI FCV-620

California, United States
896Listings|355Followers
Overview
Specs
X Axis Travel
25"
635 mm
Y Axis Travel
21.06"
534.92 mm
Z Axis Travel
18.11"
459.99 mm
A Axis Travel
360°
360°
B Axis Travel
-50° to +110°
-50° to +110°
Power
20 hp
14.9 kW
RPM
15,000 RPM
15,000 RPM
# ATC
60
60
Taper
CAT 40 Big Plus
CAT 40 Big Plus
Max Workpiece Weight
661 lb
299.8 kg
Max Workpiece Diameter
25.59"
649.99 mm
Dimensions
123" x 99" x 116"
123" x 99" x 116"
Weight
19,000 Lbs
19,000 Lbs
Equipped With

Fanuc 0i-MF CNC Control
5 axis Machining (3+2)
Prepped For 1,000 psi
Scales on B & C-axis
Robot Interface
200 Blocks Look Ahead w/Data Server
Automatic Right Side Doors
Hydraulic Porting Thru Table
Chip Conveyor
Coolant Tank
