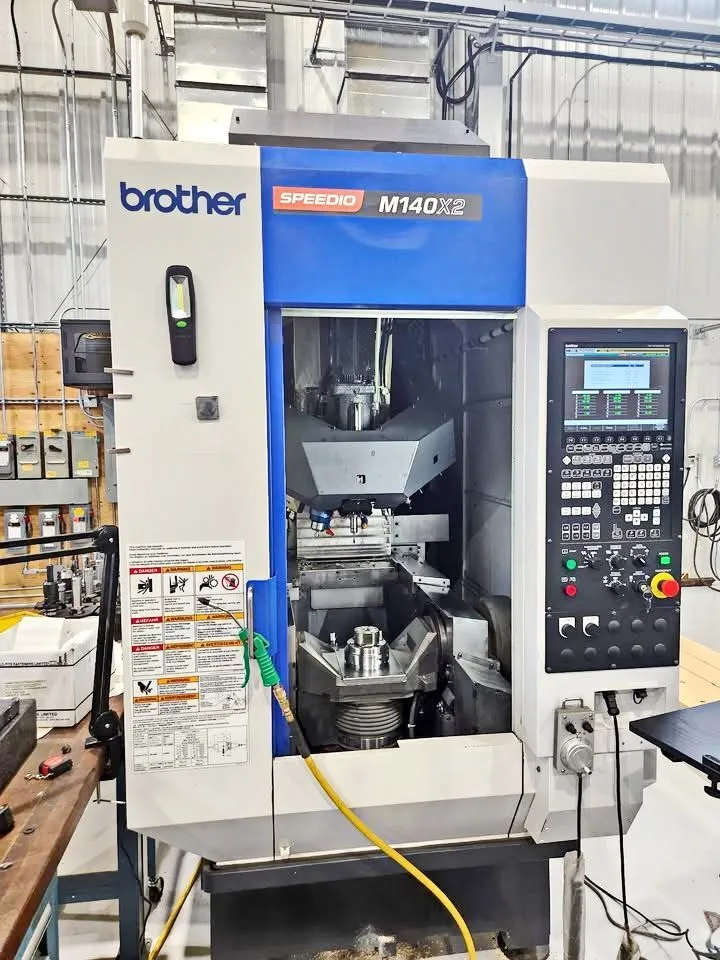

USED 2017 BROTHER SPEEDIO M140X2 DRILL & TAP
Overview
Description
2017 Brother Speedio M140X2 5-Axis Vertical CNC Machining Center, TSC, 2000 RPM Turning Spindle, Renishaw Probing, Mist Collector, Hydraulic Actuator Kit, Chip Conveyor
Specifications
| X-Axis | 7.9" | 200.66 mm |
|---|---|---|
| Y-Axis | 17.3" | 439.42 mm |
| Z-Axis | 12" | 304.8 mm |
| A-Axis | +5° ~ -95° | +5° ~ -95° |
| C-Axis | 360° | 360° |
| Power | 13.6 hp | 10.1 kW |
| RPM | 16,000 RPM | 16,000 RPM |
| RPM (Turning) | 2000 | 2000 |
| # ATC | 22 | 22 |
| Taper | BT-30 | BT-30 |
| Table Diameter | 5.5" | 139.7 mm |
| # Axis | 5 | 5 |
| Max Table Load | 88.2 lb | 88.2 lb |
| Rapid Traverse (X/Y/Z) | 1,969 in/min. | 1,969 in/min. |
| Control | CNC (Brother CNC-C00) | CNC (Brother CNC-C00) |
| Dimensions | 144.7" X 52.6" X 102" | 144.7" X 52.6" X 102" |
| Weight | 5,226 lb | 5,226 lb |
Equipped With
5-axis
Through spindle coolant (435 psi)
2000 rpm turning spindle
Renishaw OMP-40 probe w/ inspection plus software
Renishaw laser probing
Hydraulic actuator kit
LNS turbo chip conveyor (rear exit hinge type)
Mist collector
Quick change work holding
Air assisted tool wash & back washing system
Automatic greased lubrication
Chip shower system
150l coolant tank
Remote jog handle
Rigid tapping
Air turbine spindle
