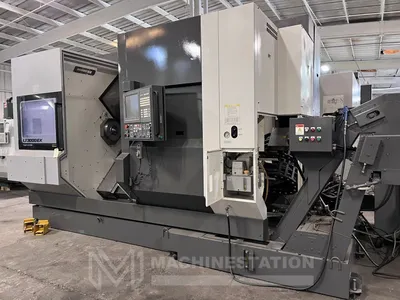

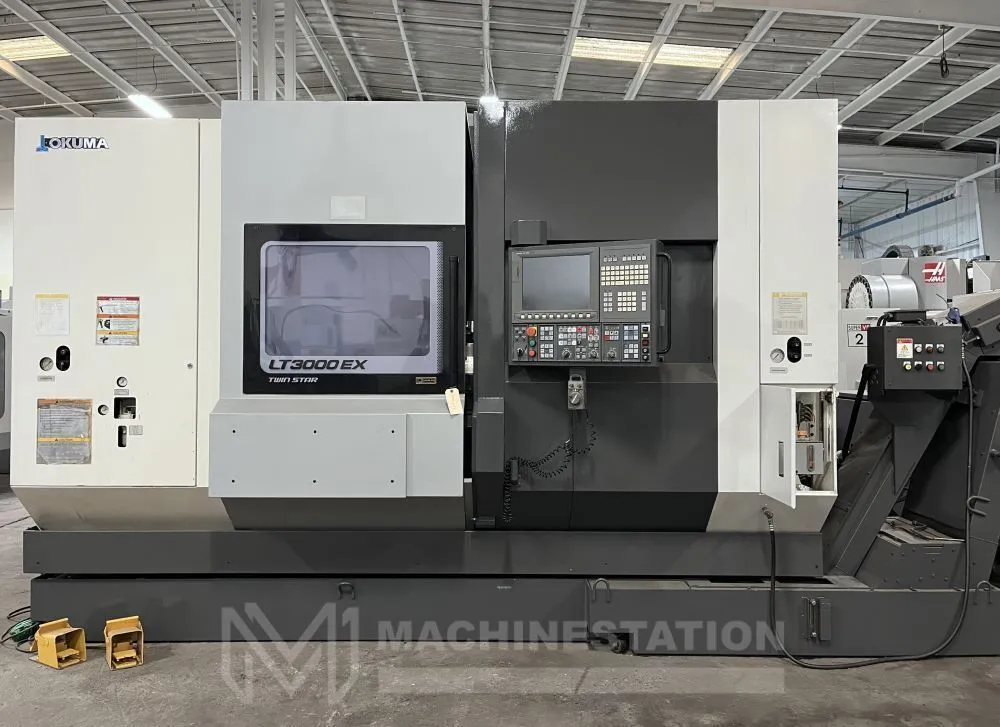

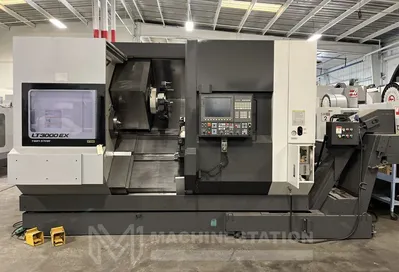

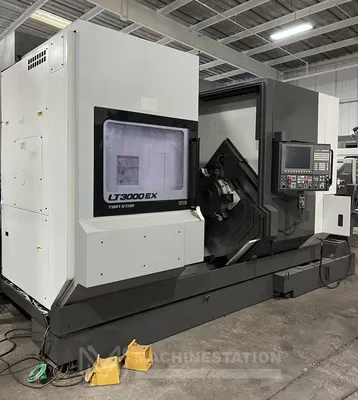

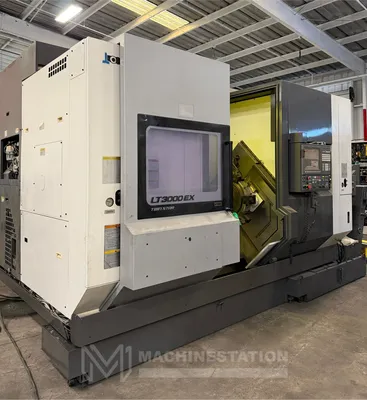

USED 2013 OKUMA LT3000EX


Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

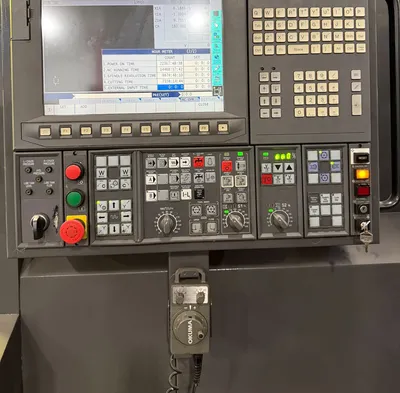

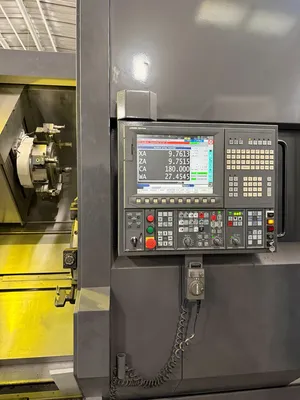

Okuma OSP-P300L CNC Control

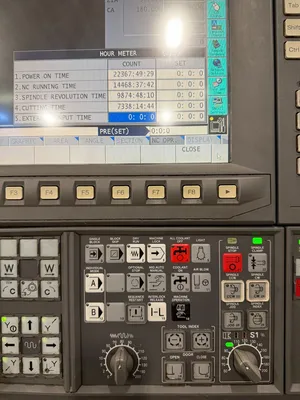

7,338 Hours Cutting Time
16 Station Upper Turret with Live Tool
16 Station Lower Turret with Live Tool
A2-6 Main Spindle
A2-6 Sub Spindle
Rigid Tapping on Both Spindles
Coolant System

Specifications:
Capacity:
 Max Turning Diameter Upper Turret: 13.78"
 Max Turning Diameter Lower Turret: 13.78"
 Max Swing Over Saddle  : 21.66"
 Max Turning Length: 7.88"
 Max Bar Capacity Main Spindle : 2.56"
 Max Bar Capacity Sub Spindle : 2.56"

Travels:
 X1 Axis Travel Upper : 10.04"
 X2 Axis Travel Lower : 10.04"
 Y1 Axis Travel: 4.92"
 Y2 Axis Travel: 4.92"
 Z1 Axis Travel Upper : 36.61"
 Z2 Axis Travel Lower : 36.61"
 W Axis Travel: 37.01" ( Sub Spindle )
 C Axis: 360° (0.001°) Both Spindle

Feedrate:
X Axis: 1181 IPM Rapid Traverse
Y Axis: 787 IPM Rapid Traverse
Z Axis: 1575 IPM Rapid Traverse
W Axis: 1575 IPM Rapid Traverse

Spindle:
 Main Spindle Bore: 3.15″
 Sub Spindle Bore: 3.15″
 Main Spindle Nose: A2-6
 Sub Spindle Nose: A2-6
 Main Spindle Speed: 45-5000 RPM
 Sub Spindle Speed: 45-5000 RPM
 Main Spindle Power: 30 HP
 Sub Spindle Power: 20 HP

Turret:
Turret Type: Multitasking V16
Upper Turret Capacity: 16 Stations
Lower Turret Capacity: 16 Stations
Live Tool Speed: 45 - 6000 RPM
Live Tool Power: 9.5 HP

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 56.8 kva
Overall Dimensions: 177.32" x 108.27" x 104.33"
Weight: 24640 lbs. Approx.


16 Stations Twin Live Tool Turrets
Y Axis Capability on Both Turrets

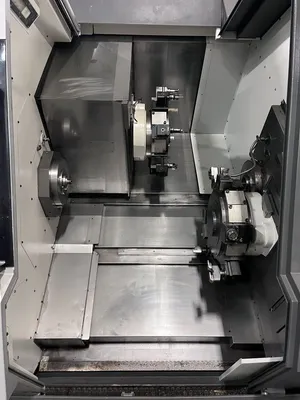

Twin Spindles
Servo Controlled Full C-Axis on Both Spindles
Chip Conveyor
Foot Operated Control for Chuck

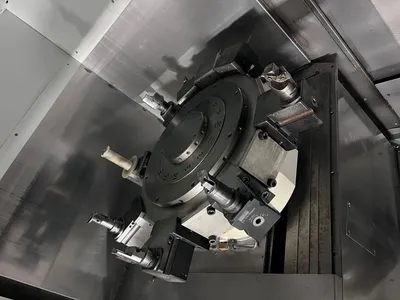

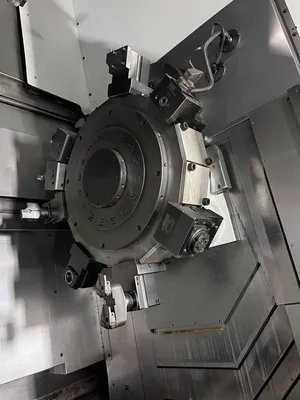

Static and Live Tool Holders are Mounted on Turrets (As shown in the images)
