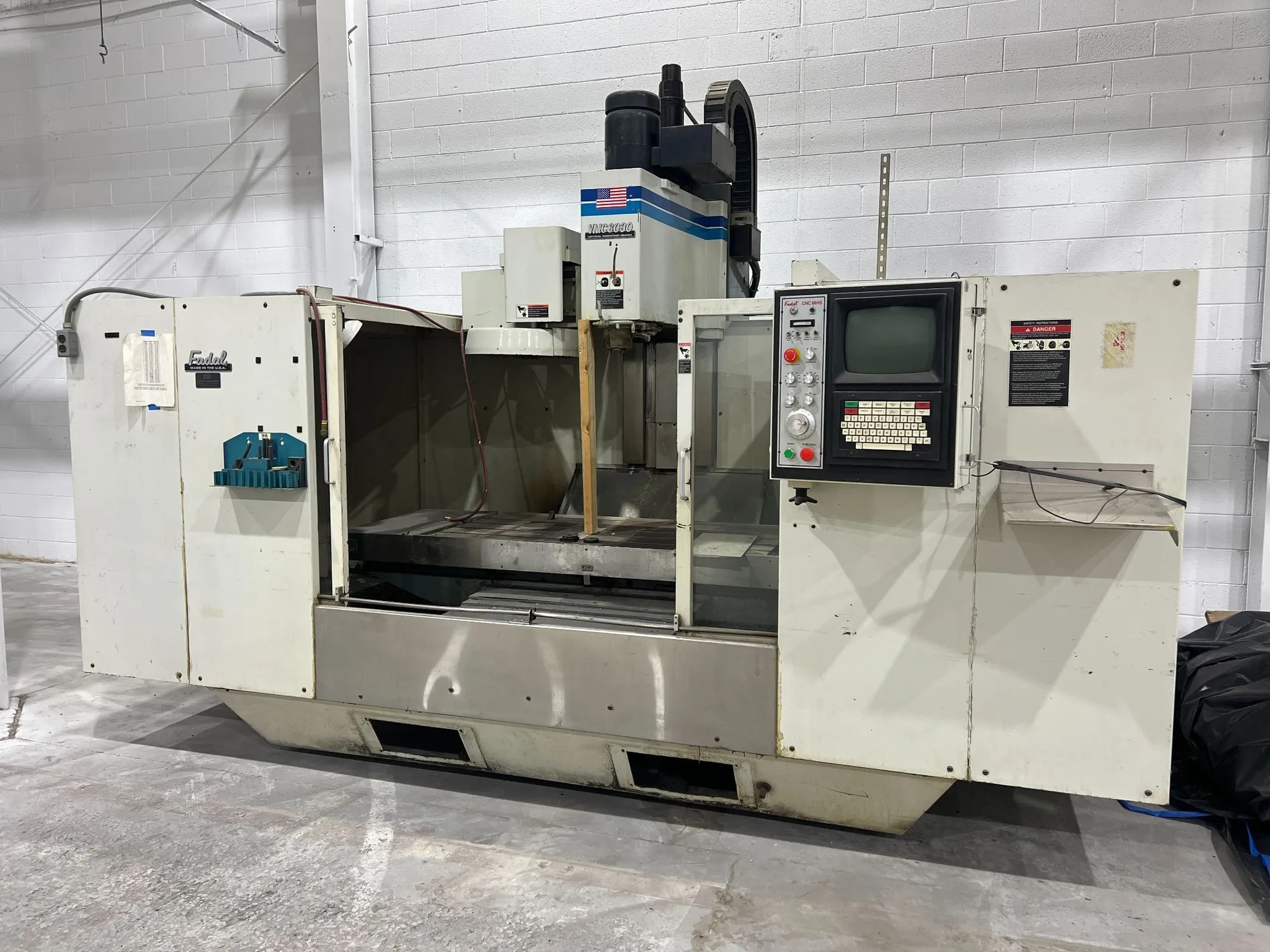

Fadal Model 6030HT Vertical Machining Center, 1995, offers 60"x30"x30" XYZ travel, 21 ATC, CT40 taper, 480V, 3-phase power, 10,000 RPM spindle, 62.5"x30" table. Reliable choice for precision machining needs.
| X | 60" | 1,524 mm |
| Y | 30" | 762 mm |
| Z | 30" | 762 mm |
| Power | 480 hp | 357.9 kW |
| # ATC | 21 | 21 |
| Taper | CT40 | CT40 |
| Table-W | 62.5" | 1,587.5 mm |
| Table-L | 30" | 762 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fadal CNC 88HS) | CNC (Fadal CNC 88HS) |
| Dimensions | 158" lr x 103" fb x 122" h | 158" lr x 103" fb x 122" h |
| Weight | 17,500# | 17,500# |
X Axis Travel: 60″
Y Axis Travel: 30″
Z Axis Travel: 30″
Table Size: 62.5″ x 30″
Tool Positions: 21 ATC
Spindle Speed: 10,000 RPM *
Spindle Taper: CT40 *
Spindle Motor: 15 HP *
Electrical: 480V/3ph/60hz *
No Coolant System
* All specifications subject to customer verification.
