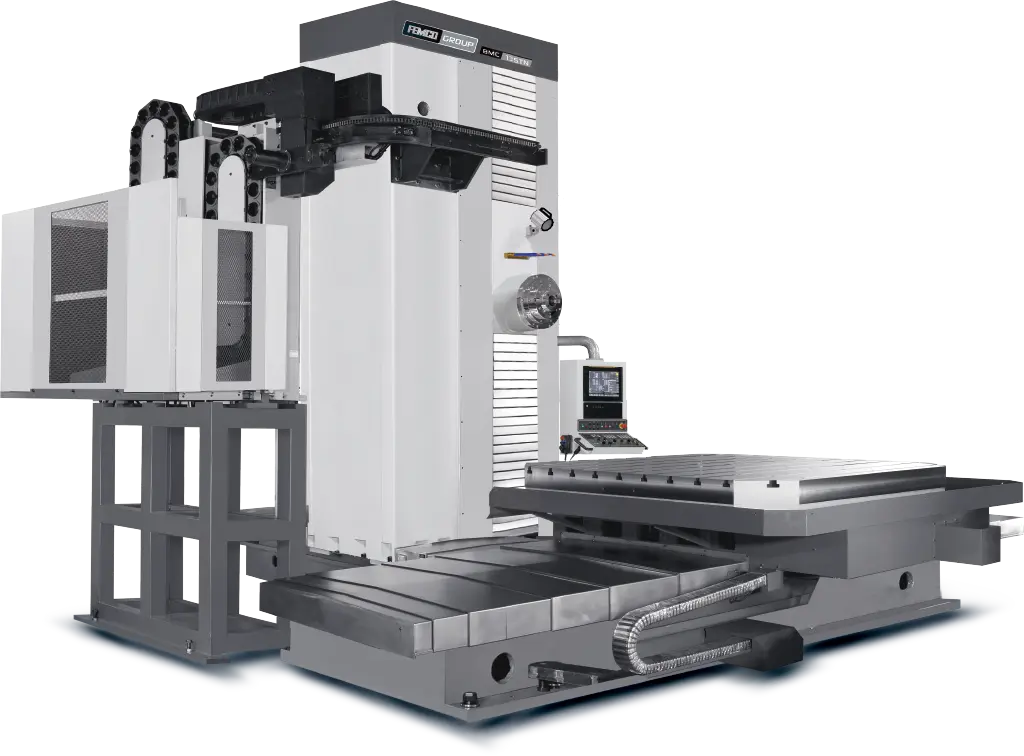

Heavy duty, large capacity T-Type Traveling Column CNC Horizontal Boring & Milling Machine comes standard with a 50 Taper, 50 HP Geared Head Spindle, Full B Axis Rotary Table, linear scales on X, Y & Z, chip conveyor and a Fanuc CNC control. The BMC-135TN has extended travels of 118” in the X-Axis and 98” in the Y-Axis as well as the long W-Axis Bar stroke of 27” with the very robust diameter of 5.31”.
Spindle Speed 3000 RPM (CT-50 Taper)
Through Spindle Coolant
60 Tool ATC
Full B-Axis Rotary Table (33,000 Lbs. Load Capacity)
Travels X, Y & Z-Axes: 118” x 98” x 59"
Travel W-Axis: 27
| Spindle Size | 5.31" | 134.87 mm |
| X-Horiz Tvl of Table | 118" | 2,997.2 mm |
| Y-Vert Tvl of Head | 98" | 2,489.2 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 86.61" | 2,199.9 mm |
| Table-L | 86.61" | 2,199.9 mm |
| Spindle Tvl. | 27.5" | 698.5 mm |
| Control | CNC (FANUC) | CNC (FANUC) |
| Dimensions | 355” x 394” x 224” | 355” x 394” x 224” |
| Weight | 72,753 lbs | 72,753 lbs |
This is a built to order machine. Please contact us for an initial specification review and detailed price proposal.
