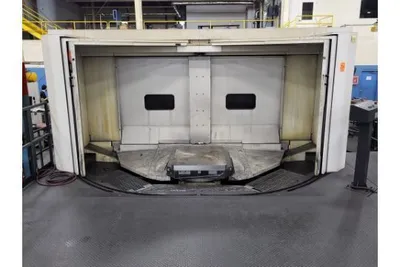

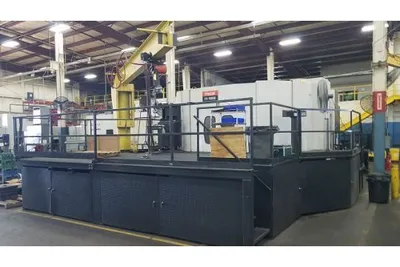

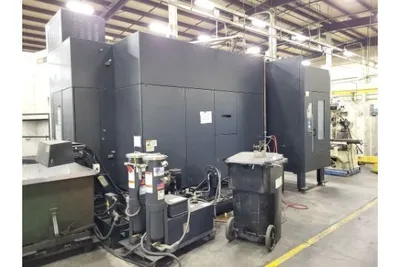

The MAZAK FH-10800 is a CNC horizontal machining center known for its precision and efficiency in machining various materials like aluminum, steel, and titanium. It features a large work envelope, a high-performance spindle, and a large tool magazine, making it suitable for complex machining operations. The machine is equipped with the Mazatrol Fusion 640M CNC control and often includes features like a coolant system, chip conveyor, and tool life monitoring.
| X | 66.9" | 1,699.3 mm |
| Y | 55.1" | 1,399.5 mm |
| Z | 55.1" | 1,399.5 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 7,000 RPM | 7,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT 50 | CAT 50 |
| Pallet-W | 39.3" | 998.22 mm |
| Pallet-L | 39.3" | 998.22 mm |
| # Axis | 4 | 4 |
| Control | CNC (MAZAK) | CNC (MAZAK) |
Specifications:
X-Axis Travel: 66.93"
Y-Axis Travel: 55.12"
Z-Axis Travel: 55.12
B-Axis Indexing: 0.001 Degree
Pallet Size: 39.37" x 39.37"
Spindle Speed: 7000 RPM
Spindle Taper: CAT 50
Mazak Mazatrol 640M CNC Control

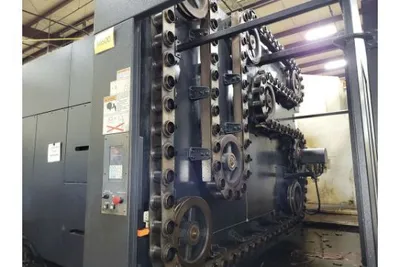

120-Position Automatic Tool Changer
1000 PSI Through Spindle Coolant
Renishaw Probe
Chip Conveyor
