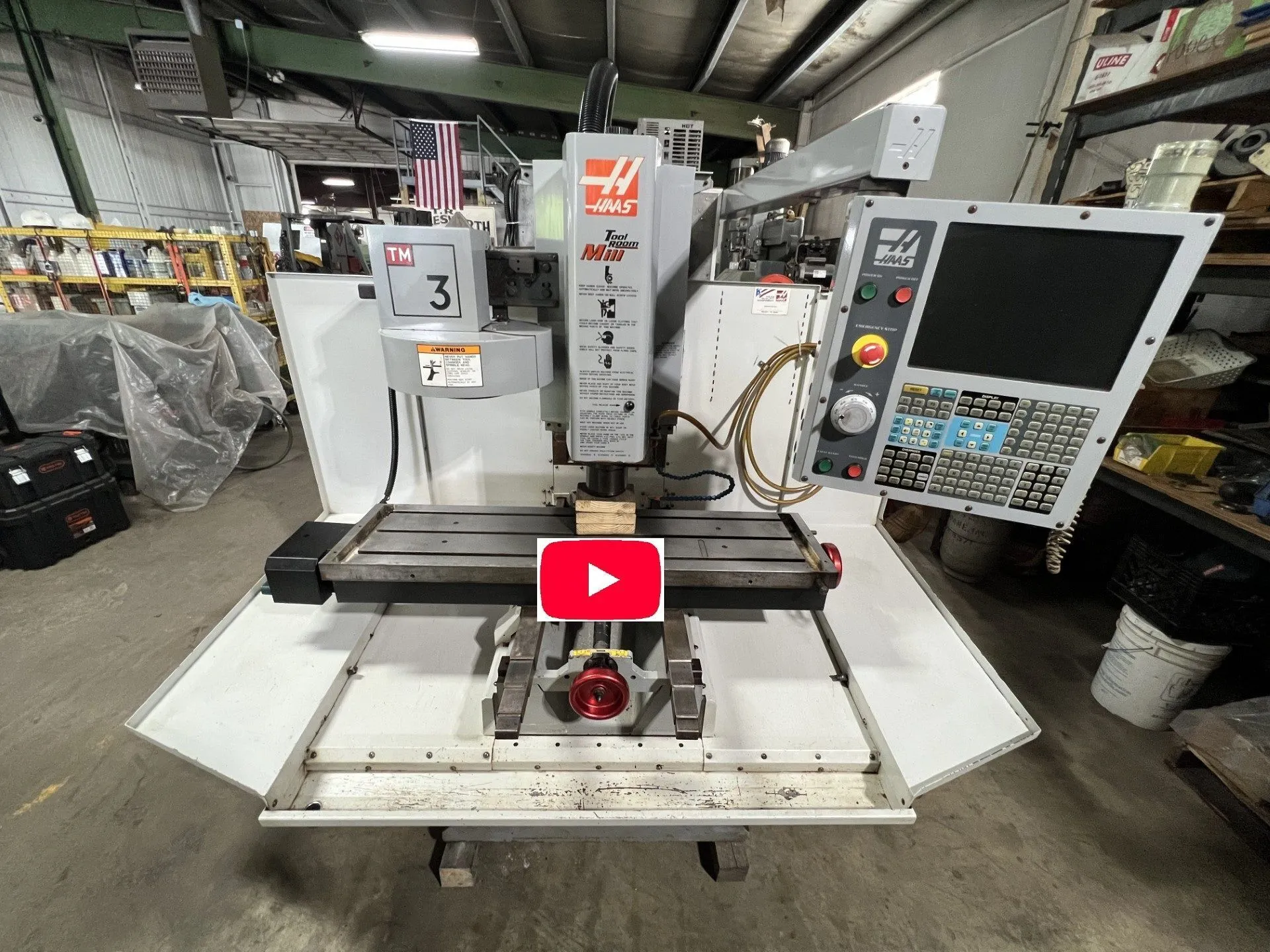

HAAS TM-3 Vertical Machining Center, 2007 model. Features X/Y/Z travels of 46"/20"/16", 7.5 HP drive, 4,000 RPM spindle, CAT-40 taper, 10 ATC, 14.5"x57.75" table. Includes Kurt vise, assorted tool holders, USB slot for CNC program uploads.
| X | 46" | 1,168.4 mm |
| Y | 20" | 508 mm |
| Z | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 10 | 10 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 14.5" | 368.3 mm |
| Table-L | 57.75" | 1,466.8 mm |
| Dimensions | 128" x 90" x 102" | 128" x 90" x 102" |
| Weight | 6200 | 6200 |
Features:
• 7.5 HP Main Drive
• 4000 RPM Spindle Speed
• Cat #40 Spindle Taper
• USB for program uploading
• CNC programmable
Specifications:
X-Axis Travel............................ 40"
Y-Axis Travel............................ 20"
Z-Axis Travel............................ 20.75"
Spindle Speed............................ 4,000 RPM
Spindle Motor............................ 7.5 HP
Spindle Taper............................ CAT 40
Table Size............................... 14.5" X 57.75"
Table Load Capacity...................... 1,000 LBS.
