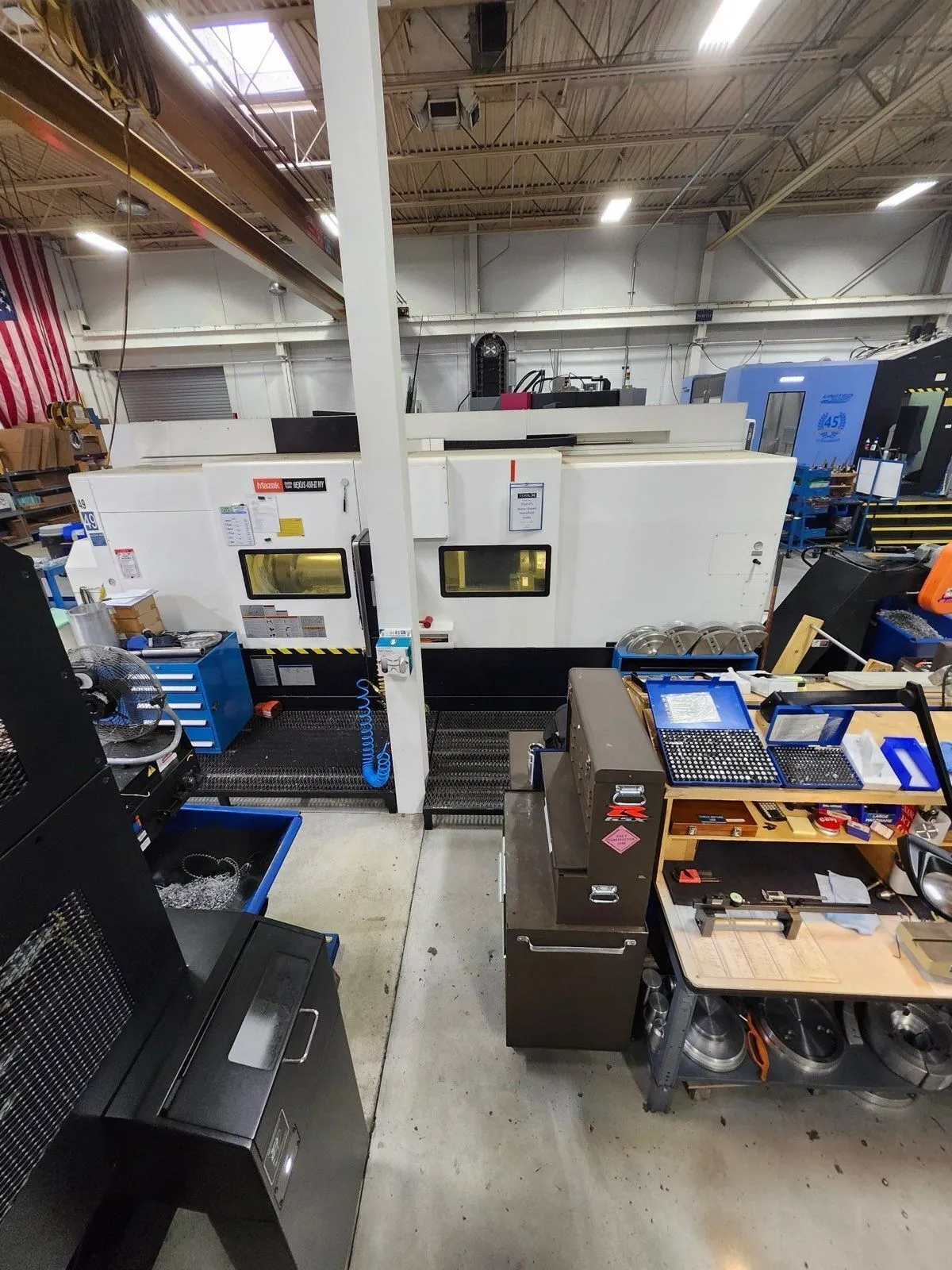

USED 2014 MAZAK QTN 450-II MY
Overview
Description
2014 MAZAK QTN 450-II MY CNC Lathe, equipped with milling, Y-axis, steady rest, and MAZATROL MATRIX NEXUS. Offers max swing 29.5", 82.6" cutting length, and hydraulic chuck. Includes tool holders and a high-pressure coolant system. Used, well-maintained.
Specifications
| Maximum Swing | 29.5" | 749.3 mm |
|---|---|---|
| Max Turning Diameter | 22.8" | 579.12 mm |
| Main Spindle Bore/Max Bar Capacity | 7.23/ 6.5 | 7.23/ 6.5 |
| Tail Stock/Sub Spindle | Tail Stock | Tail Stock |
| Maximum Swing Over Cross Slide | 22.8" | 579.12 mm |
| Maximum Cutting Length | 82.6" | 2,098 mm |
| X-Axis Travel (X1, X2, X3) | 13.375 | 13.375 |
| Z-Axis Travel (Z1, Z2, Z3) | 82.25 | 82.25 |
| Y-Axis Travel (Y1, Y2, Y3) | 7.87" | 7.87" |
| C-Axis Indexing (1, 2) | 0.0001 | 0.0001 |
| Main Spindle Chuck Size | 18" | 457.2 mm |
| Main Spindle Chuck Type | Hydraulic | Hydraulic |
| Main Spindle Bore Diameter | 7.23" | 183.64 mm |
| Main Spindle Maximum Bar Work | 6.5" | 165.1 mm |
| Main Spindle Speed | 2,000 RPM | 2,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 50 | 50 |
| Rear Chuck Prep | Yes | Yes |
| Turret Tool Positions 1, 2 | 12 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 | 10 |
| Chip Conveyor | Yes | Yes |
| Chip Conveyor | Side | Side |
| Milling Spindle Synchronous Tapping | Yes | Yes |
| Tool Eye Automatic Front Spindle | Yes | Yes |
| Tool Eye Measurement Lower Turret | Yes | Yes |
| Coolant Thru Milling Head | Yes | Yes |
| High Pressure Coolant System (PSI) | 213 | 213 |
| Work Measuring System (Probe) | YES | YES |
| Y-Axis | Upper Turret | Upper Turret |
| Rapid Traverse, X-Axis | 1181 | 1181 |
| Rapid Traverse, Z-Axis | 1299 | 1299 |
| Additional Tooling | Some | Some |
| Control | CNC (MAZATROL MATRIX NEXUS 2 CONTROL) | CNC (MAZATROL MATRIX NEXUS 2 CONTROL) |
| Dimensions | 245" x 110" x 105"H (APPROX) | 245" x 110" x 105"H (APPROX) |
| Weight | 42,417 LBS | 42,417 LBS |
Equipped With
MAZATROL MATRIX NEXUS
MISC TOOL HOLDERS
FILTRATION & COOLANT SYSTEM
TAILSTOCK MOUNTED DEEP-HOLE DRILLING & MILLING
BORING BAR WITH ANGLE HEAD
STEADY REST
