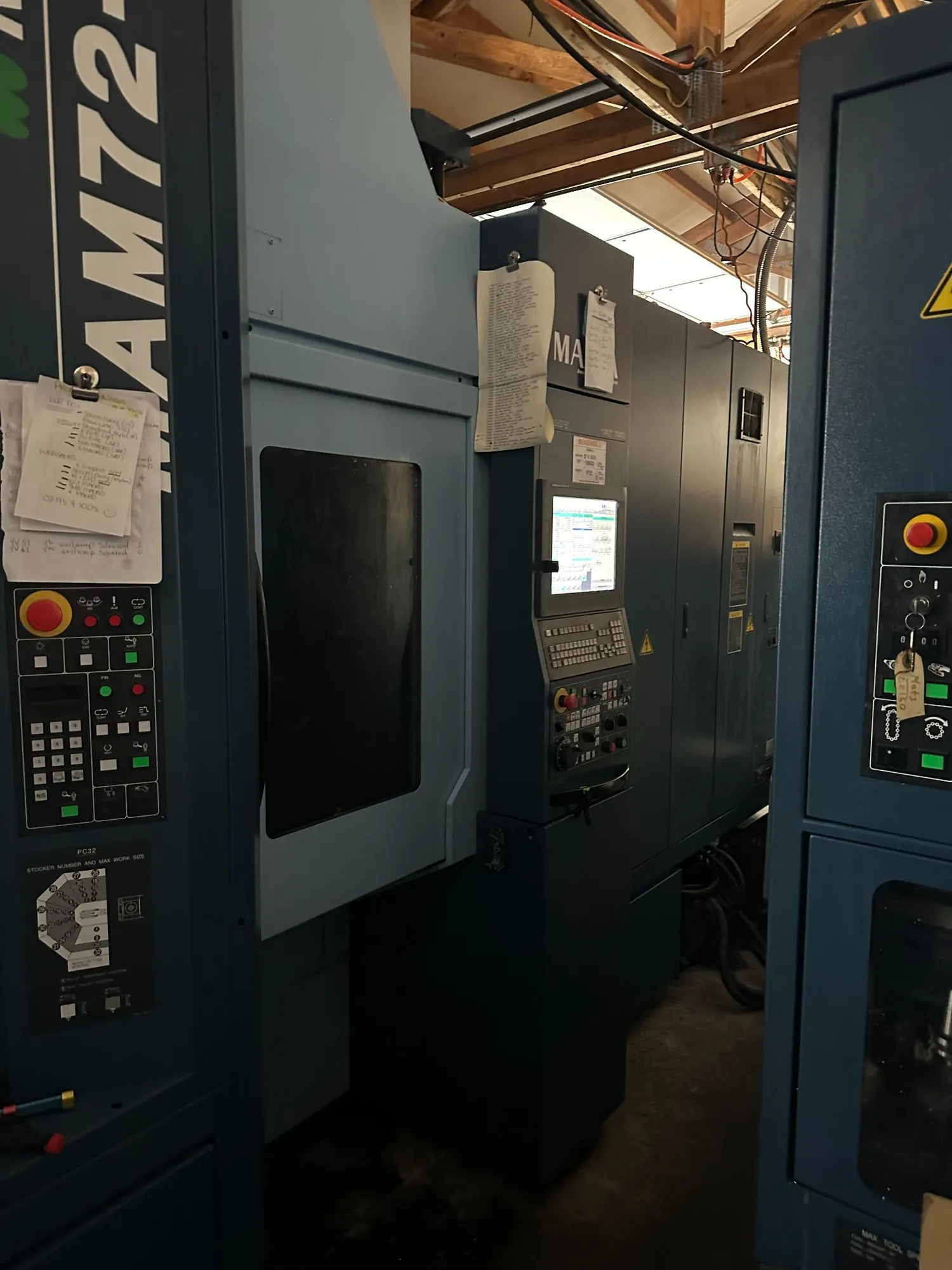

USED 2020 MATSUURA MAM72-35VN-PC32
Overview
Description
2020 Matsuura MAM72-35V-PC32 vertical machining center available. Efficient and precise, well-suited for complex part production. Ideal for advanced manufacturing needs. Used, excellent investment for boosting output capacity.
Specifications
| X Travel | 21.65" | 549.91 mm |
|---|---|---|
| Y Travel | 17.32" | 439.93 mm |
| Z Travel | 22.83" | 579.88 mm |
| Spindle Speed | 20000 rpm | 20,000 RPM |
| Tool Capacity (ATC) | 240 | 240 |
| Main Spindle Motor | 25 hp | |
| Spindle Taper | CAT 40 | CAT 40 |
| Control | CNC | CNC |
Matsuura MAM72-35VN-PC32 w/Fanuc 31IB
The machine is a used 2019, fully gone through and refurbished by factory technicians.
20,000 RPM, 25HP
320/320 Matrix ATC
CAT-40 + CAT Special Pull Stud
Matsuura Chip Management System w/Conveyor, Scraper & Drum Filter
Scale Feed Back X,Y,Z
Programable Tailstock
Air Blow for Chip Swarf Removal*
Vacuum Type Coolant Thru Spindle Prep
Coolant Check Flow*
STD: Tool Precheck Function*
Spindle Load Monitor Function*
3 Color Patrol Light
Weekly Timer
Work Light
Chip Flush
8 M Functions*
Rotary Wiper*
Manual Pulse Generator
Matsuura/Fanuc High Speed/High Precision Control Option Pkg
Complete Verification & Posting Software
EZ-5 w/Calibration Ball
STL File
STD: Mosnic Lift Up Chip Conveyor w/ Drum Filter and Scraper
Renishaw OMP400 IPM Probe Retrofit Kit
Renishaw NC-4 ATLM/ BTD Laser Probe
Equipped With
FANUC 31IB
20,000 RPM, 25HP
320/320 MATRIX ATC
CAT-40 + CAT SPECIAL PULL STUD
MATSUURA CHIP MANAGEMENT SYSTEM W/CONVEYOR, SCRAPER & DRUM FILTER
SCALE FEED BACK X,Y,Z
PROGRAMABLE TAILSTOCK
AIR BLOW FOR CHIP SWARF REMOVAL*
VACUUM TYPE COOLANT THRU SPINDLE PREP
COOLANT CHECK FLOW*
STD: TOOL PRECHECK FUNCTION*
SPINDLE LOAD MONITOR FUNCTION*
3 COLOR PATROL LIGHT
WEEKLY TIMER
WORK LIGHT
CHIP FLUSH
8 M FUNCTIONS*
ROTARY WIPER*
MANUAL PULSE GENERATOR
MATSUURA/FANUC HIGH SPEED/HIGH PRECISION CONTROL OPTION PKG
COMPLETE VERIFICATION & POSTING SOFTWARE
EZ-5 W/CALIBRATION BALL
STL FILE
STD: MOSNIC LIFT UP CHIP CONVEYOR W/ DRUM FILTER AND SCRAPER
RENISHAW OMP400 IPM PROBE RETROFIT KIT
RENISHAW NC-4 ATLM/ BTD LASER PROBE
