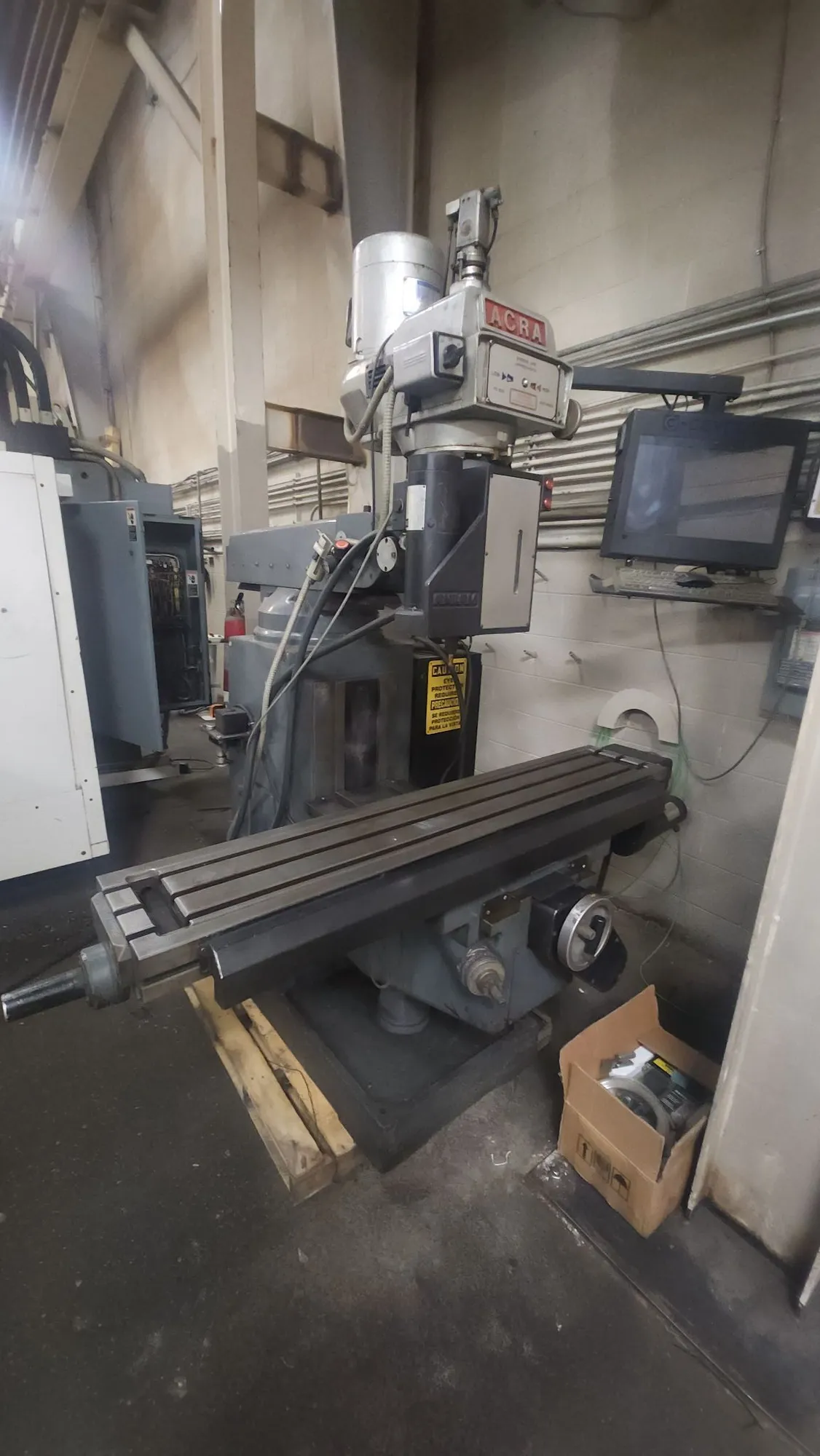

USED ACRA PLUS MILLS
Overview
Used 10" x 54" Acra 3 Axis Vertical Milling Machine with CNC controller. Motorized table adjustments. Manual vertical adjustment
Specs
Table Working Surface 54" x 10" (1372 x 254 mm)
X Axis Travel 35" (889 mm)
Y Axis Travel 16.3" (414 mm)
Z Axis Travel (quill) 5" (127 mm)
T-Slots 3 x 0.625" x 2.5"
(3 x 15.875 x 63.5 mm)
Ram Travel 18.5" (470 mm)
Knee Travel 15.3" (389 mm)
Throat Distance 9.6" ~ 28.1"
(245 ~ 715 mm)
Spindle Gaugeline to Table Top 5.31" ~ 20.7"
(135 ~ 525 mm)
Vertical Speed (Variable Speed) 60 ~ 4500 RPM
Quill Feed 0.0016/0.0031/0.0063"
(0.04 / 0.08 / 0.16 mm)
Vertical Spindle Taper R8
Head Tilt (right-left) 90º
Head Tilt (up-down) 45º
Vertical Motor 3 HP
Dimensions 79.5" x 66.1" x 86.6"
(2020 x 1680 x 2200 mm)
Weight 2750 lbs. (1250 kgs)
Equipped With
Centroid CNC controller
