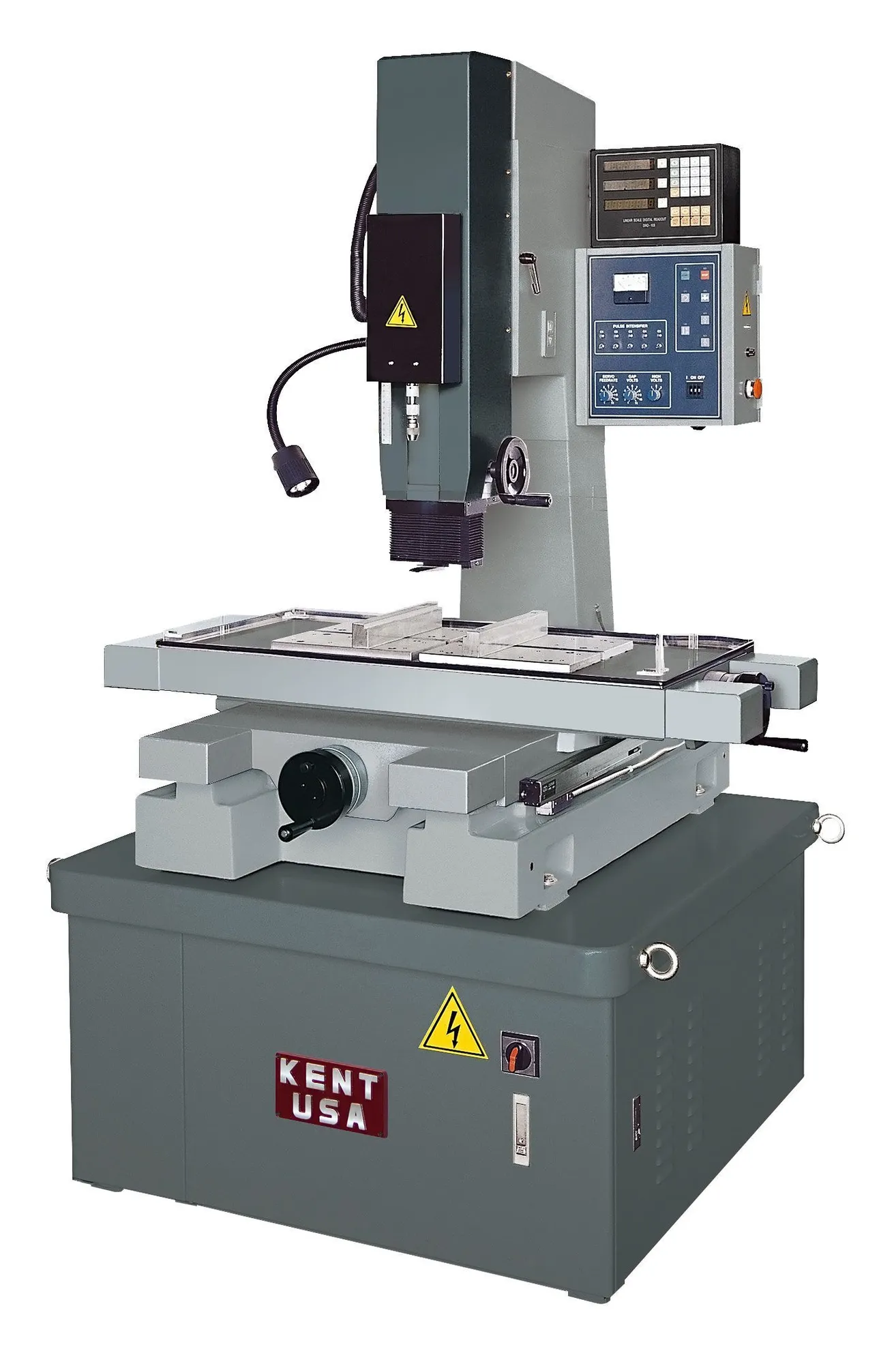

NEW KENT USA AD-20

KENT USA® Drilling Type EDMs offer precise servo motor control, ensuring stable drilling operations. These machines are specifically designed to handle hardened tool steel, carbides, and various other conductive materials with efficiency and accuracy. They are versatile enough to accommodate larger workpieces and plastic molds, making them suitable for a wide range of applications. Additionally, they feature an automatic pressure release function, enhancing safety and operational convenience.

Specification AD-20 AD-30 AD-20A
Work Table 18.1" x 8.3" 18.1" x 8.3" 19.7" x 11.8"
Max Workpiece 24.8" x 16.5" 24.8" x 16.5" 34.5" x 18.5"
Table Travel X/Y 11.8" x 7.9" 11.8" x 7.9" 13.8" x 9.8"
Z Axis Travel 13.8" 13.8" 13.8"
Ram Servo Travel 5.9" 13" 5.9"
Max Length of Electrode 15.8" 15.8" 15.8"
Min Electrode Diameter 0.00787" - 0.1181" 0.00787" - 0.1181" 0.00787" - 0.1181"
Max Workpiece Weight 176 lbs 176 lbs 331 lbs
Dielectric Water Water Water
Capacity of Dielectric 5.28 Gallons 5.28 Gallons 5.28 Gallons
Gross Weight 1322 lbs 1433 lbs 1873 lbs
Net Weight 1102 lbs 1213 lbs 1653 lbs
Packing Dimensions 49" x 48" x 88" 49" x 48" x 88" 49" x 48" x 88"

STANDARD ACCESSORIES:
Electrode chuck ø0.2mm - ø3.0mm (1 pc)
Electrode guide ø1.0mm (1 pc)
Brass pipe ø1.0mm (10 pc)
Toolbox with standard tools
Filter unit (1 pc)

Digital display and numeric operational controls with 10 separate memory sets for job and parameter settings provide quick and easy set ups.
 Drilling time preset for simple and easy operation during multi-hole drilling.
 Large electrode range, from ø0.3 – ø3.0mm, permits drilling on a wide range of materials such as hard metal alloy, stainless, cooper, aluminum, etc.
 Distilled water can be used as the dielectric fluid, saving cost and conventional dielectric fluid disposal issues.
