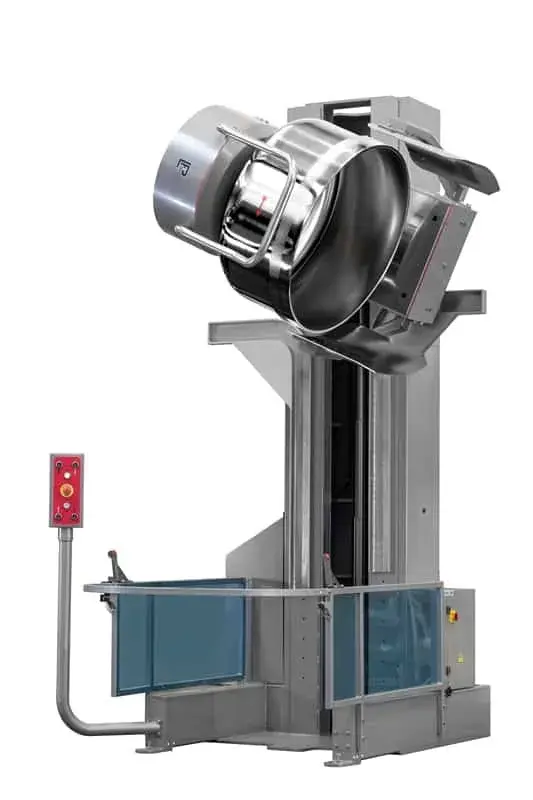

USED LP GROUP ARES-T

Designed for use with LUX bowl trolleys
LP Group focuses on engineering and manufacturing the highest quality spiral mixing equipment for bakeries around the globe. The Ares Bowl Lift features a side tilt discharge system designed for use with LUX bowl trolleys.
Bakeries / Food Service
Wholesale
The LP Group Ares side discharge bowl lift includes the following standard features:
✓ Side Tilt Discharge

Choose from either a left or right tilt discharge.
✓ Compatible with LUX Series Bowls

This lift is compatible with LUX Series Bowl Trollies including LUX-R 80, 120, 160, 200, & 280 varieties.
✓ Hydraulic Lift

Bowl is lowered and raised via a hydraulic lift.
✓ Stainless Steel Construction

Designed for durability, ease of cleaning and overall sanitation. Also equipped with stabilizing feet designed to help anchor the machine to the ground.
✓ Electromechanical Controls

Includes ability to control bowl rotation for easier discharge. The control panel is located along the side of the machine for ease of access and maintenance.

Technical Specifications:
Electrical: 208V | 60 Hz | 3 ph
Hydraulic Power: 1.5 kW
Discharge Height: 59 - 74.75" | 1500 - 1800 mm
Bowl Compatibility: LUX-R Bowls (80, 120, 160, 200, & 300)
Standard Dimensions:
Standard Dimensions (D x B x A): 94.5 x 61.5 x 129.25"
Net Weight: 3418 lb. | 1550 kg
Shipping Dimensions:
Shipping Dimensions (L x W x H): 94.5 x 75 x 89.5"
Shipping Weight: 3792 lb. | 1720 kg
