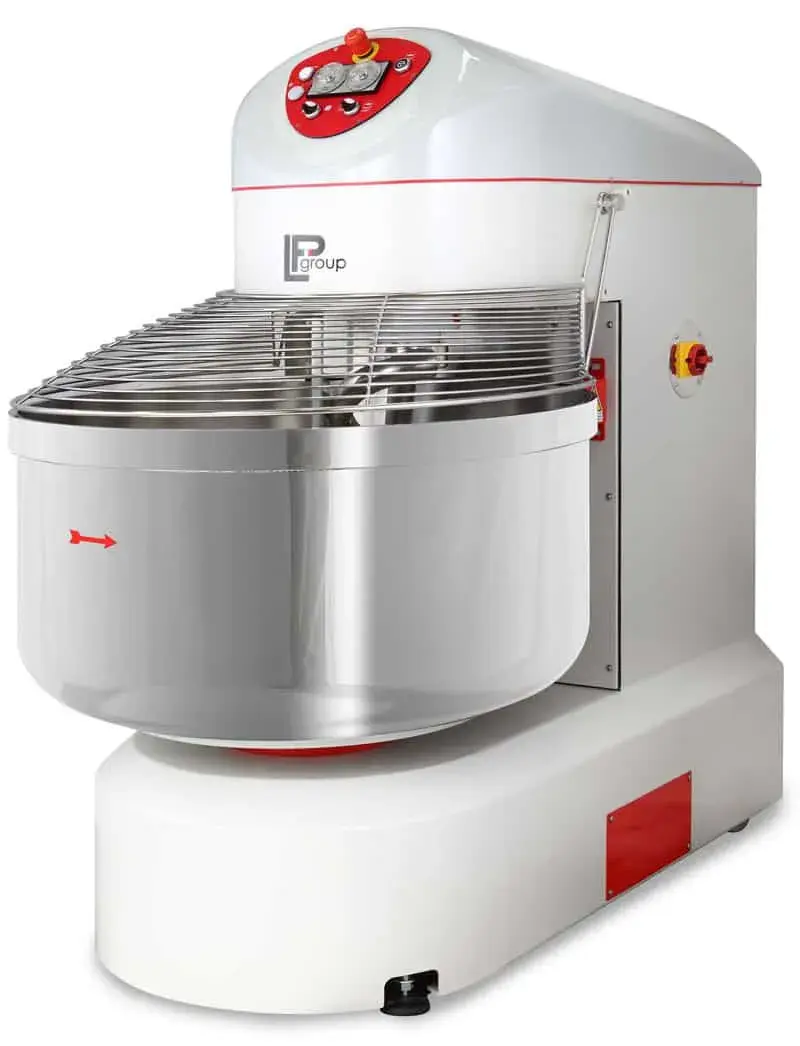

USED LP GROUP VIS-R 80

Highest quality spiral mixing equipment
LP Group focuses on engineering and manufacturing the highest quality spiral mixing equipment for bakeries around the globe. Their VIS-R line is a reinforced powerhouse designed to process dough with low hydration levels.
Bakeries / Food Service
Retail & Wholesale
The LP Group VIS-R spiral mixer includes the following standard features:
✓ Straight Breaking Bar

For enhanced durability and reliability.
✓ Dual Step Transmission

For added reliability and strength when processing stiffer doughs.
✓ Reinforced Motors

Two reinforced motors that power both the bowl and spiral.
✓ Belt Drive Train

Belt drive transmission for added reliability and strength.
✓ Suitable for Stiff Doughs

Capable of processing dough with low hydration levels.
✓ Bowl Drain

Built in bowl drain for easy cleanup!
✓ Electromechanical Controls

Includes ability to control mixer speed, and timers. The mixer can also be used in manual or semi-automatic modes.
✓ Bowl Rotation

Ability to reverse bowl rotation.

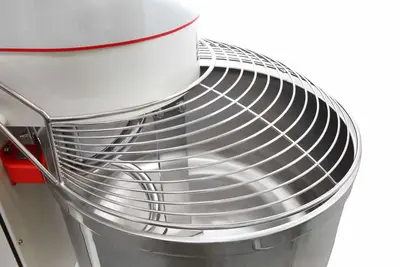

✓ Grate Bowl Cover

Stainless steel grate style bowl cover.
✓ Stainless Steel Construction

Designed for durability, ease of cleaning, and overall sanitation.
✓ 2 Speeds

Capable of running at either low or high speeds.
✚ Transparent Bowl Cover

A durable see-through cover made of clear acrylic (PMMA).
✚ Electronic Control Panel

In place of the standard electromechanical control panel, this also features an electronic bypass to avoid any service disruptions.
✚ ABS Plastic Bowl Cover

A non-see through, plastic bowl cover made of ABS plastic.

Electrical Specifications:
Voltage: 208V | 60 HZ | 3 PH
Bowl Power: 0.55 kw
Spiral Power*: 2.06/5.2 kW
*Spiral Power indicated in both first and second spped options:
Certifications: BISSC Certification ensures this unit meets all criteria in accordance with the ANSI Z50.2 sanitation standard for bakery equipment design.
Dough Capacity:
Maximum Dough Capacity: 80 kg | 176 lb
Minimum Dough Capacity: 5 kg | 11 lb
Bowl & Flour Capacity:
Bowl Capacity: 131 L | 34 gal.
Flour Capacity: 50 kg | 110 lb
Standard Dimensions (A x B x C):
Standard Dimensions: 44.3 x 27.5 x 54.5"
Net Weight: 860 lb
Shipping Dimensions (L x W x H):
Shipping Dimensions: 55 x 35 x 63"
Shipping Weight: 1015 lb
