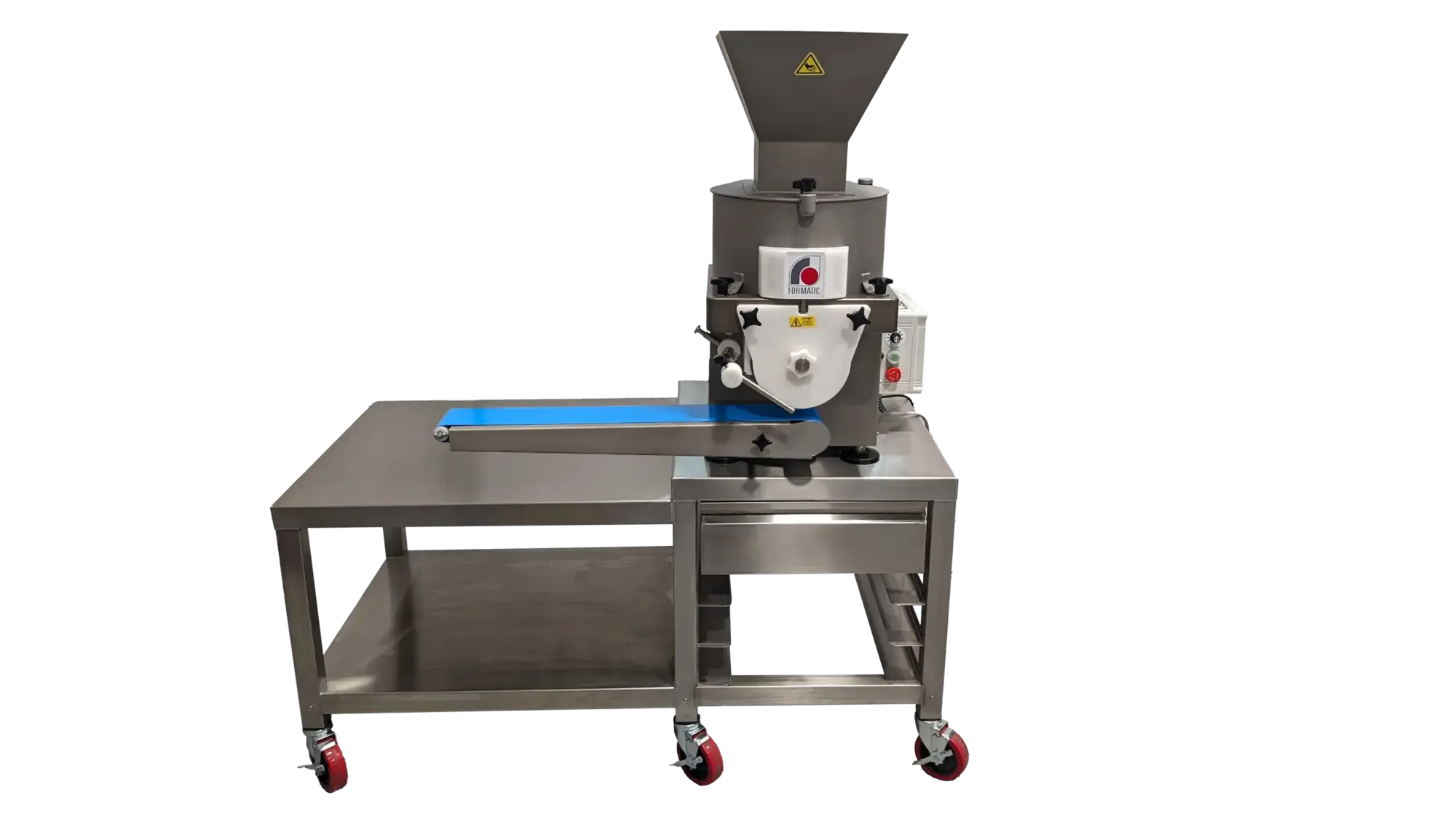

USED DEIGHTON R3000

The Formatic is a wire-release cookie machine, capable of processing doughs with large inclusions.
Their unique drum system also facilitates producing cookies with a variety of different shapes. This includes the ability to produce custom drums to your specifications.
The Formatic also has a variable production speed that depends on the cookie machine’s drum and amount of shapes on the forming drum. The standard production space of the drum is up to 4.25″ in diameter with custom shapes available upon request.
Bakeries / Food Service
Retail & Wholesale
The Deighton Formatic cookie machine includes the following standard features:

✔ Versatility

This cookie machine also form granola bars, protein bars, scones, biscuits, dog treats, and other baking/confectionery products.
✓ Simple and smooth operation

This machine is easy to use and clean!
✓ Accurate Portion Control

Consistent results (weight and size) with each deposit. Weight can also be modified via thickness adjustments.
✓ Adjustable Thickness

Deposit thickness ranges from as thin as your product will allow – 0.75 inches (19 mm).
✓ High Volume Production

Models capable of reaching high volume production.
✓ Interchangeable Drums

Deposit a wide variety of cookie types and shapes with an assortment of drum options.
✓ Manual & Automatic Operation

Choose between manual, foot pedal-based operation or continuous, automatic depositing.
The Deighton Formatic cookie machine offers the following available options:
✚ Automatic wire cleaning

Attachment designed to automatically scrape the wire-release mechanism after each deposit.
✚ Automatic Papering

Attachment designed to automatically place product onto paper with each deposit.
✚ Various Hopper Sizes

Larger hoppers are available for large-scale production.
✚ Additional Drums

The Formatic cookie machine is exclusively distributed by Erika Baking Equipment and features interchangeable drums that can have designs placed ever 180 degrees for a total of up to four custom shapes per drum.Purchase additional drums that can be interchanged for a diverse product lineup.
✚ Extended conveyors

Longer conveyor belts are available upon request.
✚ Deep Drop Drum

Achieve deposits with thickness ranging between 0.25 inches (7 mm) – 1.25 inches (32 mm).
✚ Stainless Steel Production Table

Stainless steel production table with storage and locking casters for enhanced mobility.

Electrical Specifications: 220v - 240v | 1 ph | 60 Hz*
Machine: 1.5 kW
Hopper Capacity: 45 lb. | 20.5 kg
Output (Revolutions/Hour): 3,000
Production Rate: 3,000 - 6,000/hour
Warranty: 1 year parts | 90 days labor
Certifications: BEAG
Standard Dimensions (A x B x C):
Standard Dimensions: 45 x 36 x 42" | 1143 x 915 x 1062 mm
Net Weight: 267 lb. | 121 kg
Shipping Dimensions (L x W x H):
Shipping Dimensions: 36 x 29 x 46" | 915 x 737 x 1169 mm
Shipping Weight: 291 lb. | 132 kg
*Also compatible with 208v | 1 ph | 60 Hz:
