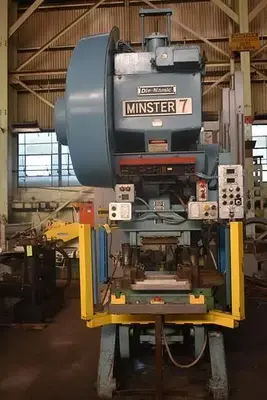

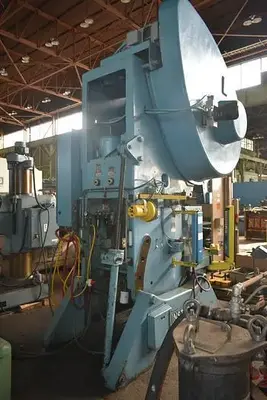

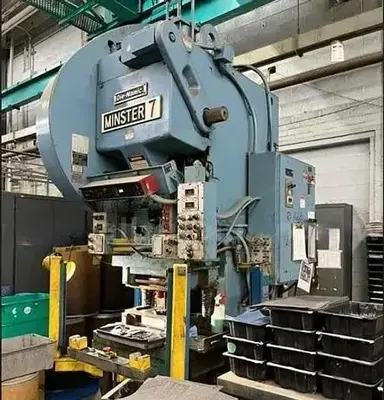

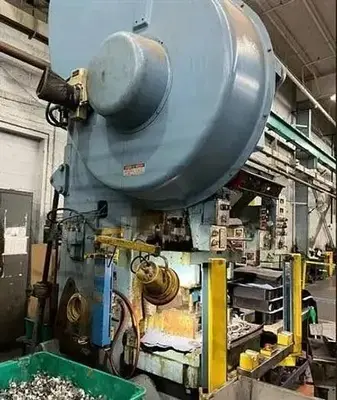

USED MINSTER #7 DIENAMIC

THIS MINSTER #7 DIENAMIC IS A 75-TON CAPACITY OPEN BACK INCLINABLE (OBI) FABRICATING PRESS. THE MACHINE OPERATES WITH A 4" STROKE LENGTH AND FEATURES A VARIABLE STROKE PER MINUTE RANGE OF 90 TO 180 SPM. KEY DIMENSIONS INCLUDE A SHUT HEIGHT TO BED (SDAU) OF 21" AND A SHUT HEIGHT TO BOLSTER (SDAU) OF 18", WITH A POWER SLIDE ADJUSTMENT OF 3.5". THE WORKING AREAS ARE DEFINED BY A 36" X 24" BED AREA (L-R X F-B) AND A 36" X 24" BOLSTER AREA (L-R X F-B). THE RAM AREA MEASURES 24" X 16" (L-R X F-B). POWER IS SUPPLIED BY A 15 HP VARIABLE DRIVE MOTOR WITH A 50 - 1750 RPM RANGE, OPERATING ON A 230-460/3/10 ELECTRICAL SYSTEM. THE APPROXIMATE WEIGHT OF THE MACHINE IS 19000 LBS.
