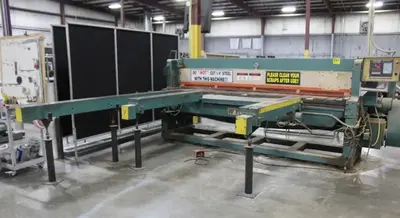

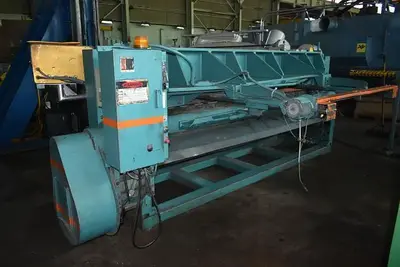

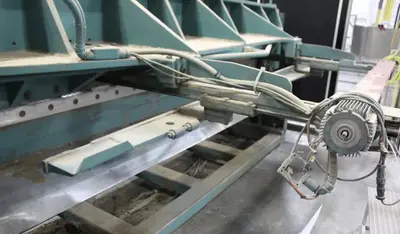

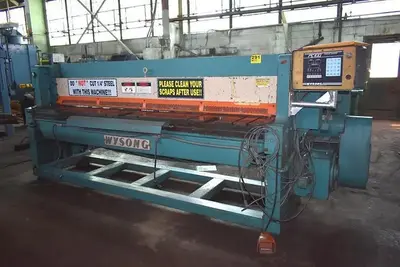

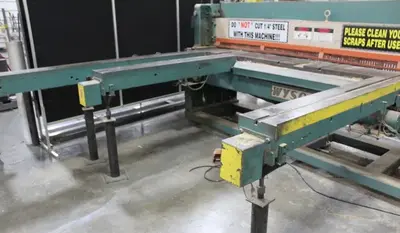

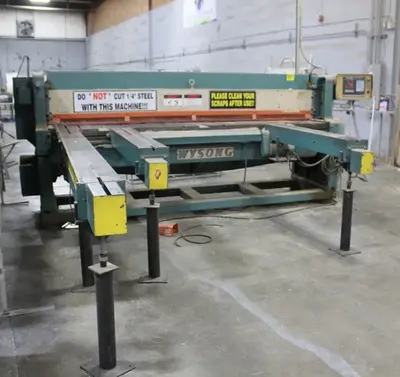

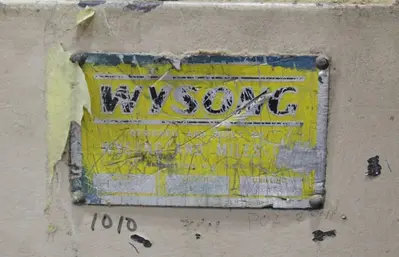

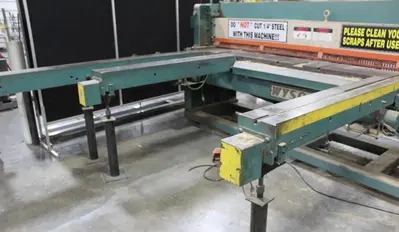

THIS WYSONG MODEL 1010 IS A MECHANICAL SHEAR SUITABLE FOR FABRICATING AND PRESSING APPLICATIONS. IT IS SPECIFIED WITH A MAXIMUM MATERIAL THICKNESS OF 0.1345 INCHES AND UTILIZES A 120-INCH BLADE LENGTH. THE SHEAR HAS A RATED CAPACITY FOR MILD STEEL OF 10 FEET BY 10 GAUGE AND FOR STAINLESS STEEL OF 10 FEET BY 12 GAUGE, WITH THE LENGTH BETWEEN HOUSINGS BEING 10 FEET. OPERATIONALLY, THE MACHINE ACHIEVES A RATE OF 60 STROKES PER MINUTE (SPM). POWER IS SUPPLIED BY A MAIN MOTOR RATED AT 10 HORSEPOWER AND 1800 RPM, REQUIRING AN ELECTRICAL SYSTEM OF 220-440 VOLT, 3-PHASE, 60-HERTZ. THE UNIT INCLUDES A 36-INCH BACK GAUGE AND FEATURES A RAKE OR TAPER PER FOOT OF 3/8 INCH. THE OVERALL DIMENSIONS ARE 168 FEET BY 103 INCHES (L X D), WITH AN OVERALL HEIGHT OF 60 INCHES. THE APPROXIMATE WEIGHT IS 13,500 LBS.
