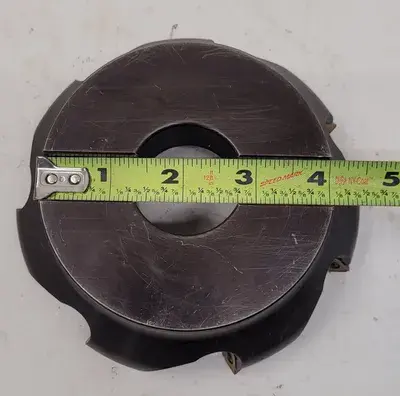

USED CERATIZIT A270.500.R.07-12-B150-200-EF

THE CERATIZIT A270.500.R.07-12-B150-200-EF MAXIMILL SHELL MILL FEATURES A 5.0000" (127.000 MM) CUTTING DIAMETER AND ACCOMMODATES A MAXIMUM DEPTH OF CUT OF 0.2360" (5.994 MM). THIS TOOL IS DESIGNED WITH A FACE-MOUNTED INSERT COUNT OF SEVEN AND IS COMPATIBLE WITH SD.. 1204.. INSERTS. ITS OVERALL LENGTH (OAL) IS 3.7500" (95.250 MM), WITH A HUB DIAMETER OF 3.7500" (95.250 MM) AND A MOUNTING SPIGOT DIAMETER OF 1.5000" (38.100 MM). THE MAXIMUM ROTATIONAL SPEED (RPMX) IS 4300 1/MIN, AND THE TOOL CUTTING EDGE ANGLE (KAPR) IS 45°. THE REQUIRED TORQUE MOMENT IS 5 NM.
