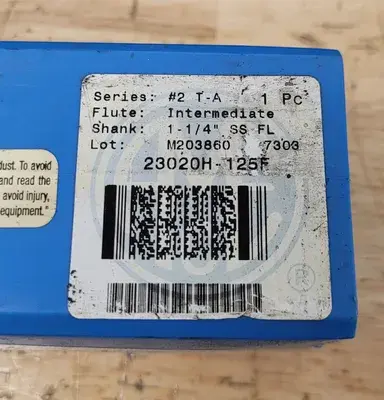

USED ALLIED MACHINE AND ENGINEERING 23020H-125F

THIS AMEC #2 TA INT INDEXABLE DRILL (MODEL: 23020H-125F) IS A REPLACEABLE DRILL BODY DESIGNED FOR GENERAL PURPOSE APPLICATIONS. IT FEATURES A HELICAL FLUTE TYPE AND AN INTERMEDIATE LENGTH TYPE. TECHNICAL SPECIFICATIONS INCLUDE A MINIMUM DIAMETER OF 0.9610 INCHES AND A MAXIMUM DIAMETER OF 1.3809 INCHES. THE TOOL HAS AN OVERALL LENGTH OF 9.343 INCHES, A BODY LENGTH OF 7.063 INCHES, AND A DRILL DEPTH OF 6.093 INCHES. THE SHANK IS FLANGED WITH A DIAMETER OF 1-1/4 INCHES AND A LENGTH OF 2.280 INCHES. THE TOOL REFERENCE LENGTH IS 7.203 INCHES, AND IT INCLUDES A 1/4 NPT PIPE TAP AT THE REAR. DEEP HOLE GUIDELINES ARE NOT APPLICABLE TO THIS PRODUCT.
