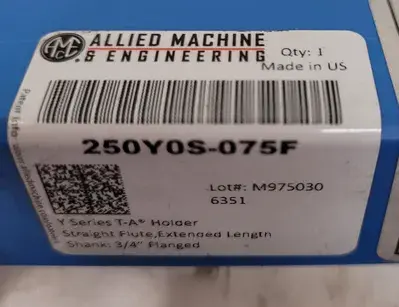

USED ALLIED MACHINE AND ENGINEERING 250Y0S-075F

THE AMEC 250Y0S-075F STRAIGHT FLUTE SPADE DRILL, MANUFACTURED BY ALLIED MACHINE & ENGINEERING, FEATURES A MINIMUM DRILL DIAMETER OF 3/8 INCH AND A MAXIMUM DRILL DIAMETER OF 27/64 INCH, WITH A MAXIMUM DRILL DEPTH OF 4-3/8 INCHES. THE TOOL MATERIAL IS STEEL, AND IT UTILIZES A STRAIGHT FLUTE TYPE WITH A FLUTE LENGTH OF 4-3/8 INCHES. THIS IS AN EXTENDED-LENGTH SPADE DRILL WITH AN OVERALL LENGTH OF 7-9/16 INCHES, A BODY LENGTH OF 5-17/32 INCHES, AND A SHANK LENGTH OF 2-1/32 INCHES. THE SHANK IS FLATTED WITH A DIAMETER OF 3/4 INCH. IT SUPPORTS COOLANT-THROUGH CAPABILITY WITH A 1-AXIAL CONCENTRIC ENTRY STYLE AND A COOLANT HOLE THREAD SIZE OF 1/8. THE TOOL PERFORMANCE IS RATED FOR GENERAL PURPOSE APPLICATIONS.
