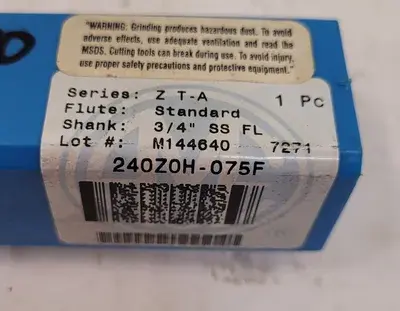

USED ALLIED MACHINE AND ENGINEERING 240Z0H-075F

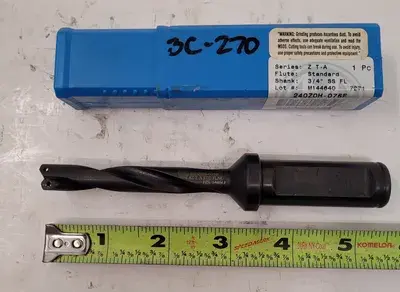

THE AMEC 240Z0H-075F Z SERIES STANDARD SPADE DRILL INSERT HOLDER BY ALLIED MACHINE & ENGINEERING IS DESIGNED FOR DRILLS WITH A MINIMUM DIAMETER OF 7/16 INCH AND A MAXIMUM DIAMETER OF 1/2 INCH. IT SUPPORTS A MAXIMUM DRILL DEPTH OF 2-3/8 INCHES AND FEATURES A STANDARD SPADE DRILL LENGTH. THE HOLDER UTILIZES A FLATTED SHANK TYPE WITH A DIAMETER OF 3/4 INCH AND A SHANK LENGTH OF 2-1/32 INCHES. IT HAS A STANDARD LENGTH TYPE, RESULTING IN AN OVERALL LENGTH OF 5-9/16 INCHES. THE HOLDER IS DESIGNED WITH A HELICAL FLUTE TYPE, WHERE THE FLUTE LENGTH IS 2-3/8 INCHES AND THE BODY LENGTH IS 3-17/32 INCHES.
