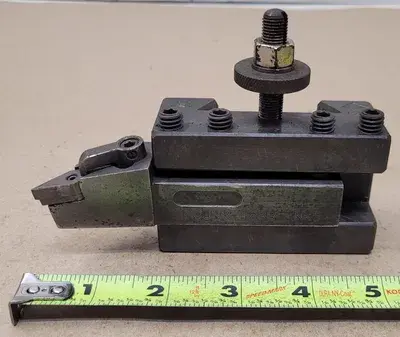

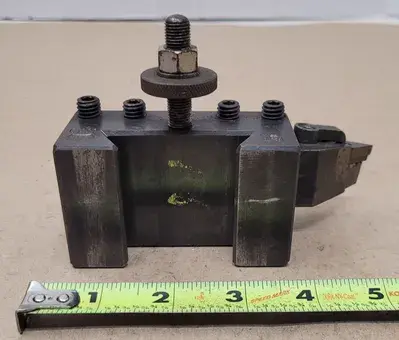

USED ALORIS CXA 1

THE ALORIS CXA 1 LATHE TOOL POST HOLDER IS DESIGNED FOR LATHES WITH A 13 TO 18 INCH SWING. THIS HOLDER FEATURES A 2-1/4 INCH TOOL HOLDER WEDGE, AN OVERALL HEIGHT OF 2-1/8 INCHES, AND AN OVERALL LENGTH OF 3-1/2 INCHES. IT ACCOMMODATES A MAXIMUM CUTTING TOOL SIZE OF 3/4 INCH AND OFFERS A CENTERLINE HEIGHT OF 1-7/16 INCHES. THE TOOL BIT RANGE IS 1/4 TO 3/4 INCH. THE POST HOLDER INCLUDES A KENNAMETAL MVJNR-123B, WHICH HAS A SHANK HEIGHT [H] OF 19.05 MM AND A SHANK WIDTH [B] OF 19.05 MM. KEY DIMENSIONS OF THE KENNAMETAL HOLDER INCLUDE AN F DIMENSION OF 25.4 MM, A TOOL LENGTH [L1] OF 114.3 MM, AND A HEAD LENGTH [LH] OF 42.2 MM. IT ACCEPTS A GAGE INSERT VN..332, UTILIZING A LOCK PIN ID DRIVE SIZE OF 5/64 AND A CLAMP SCREW ID DRIVE SIZE OF 5/32. THE UNIT DOES NOT SUPPORT THROUGH COOLANT.
