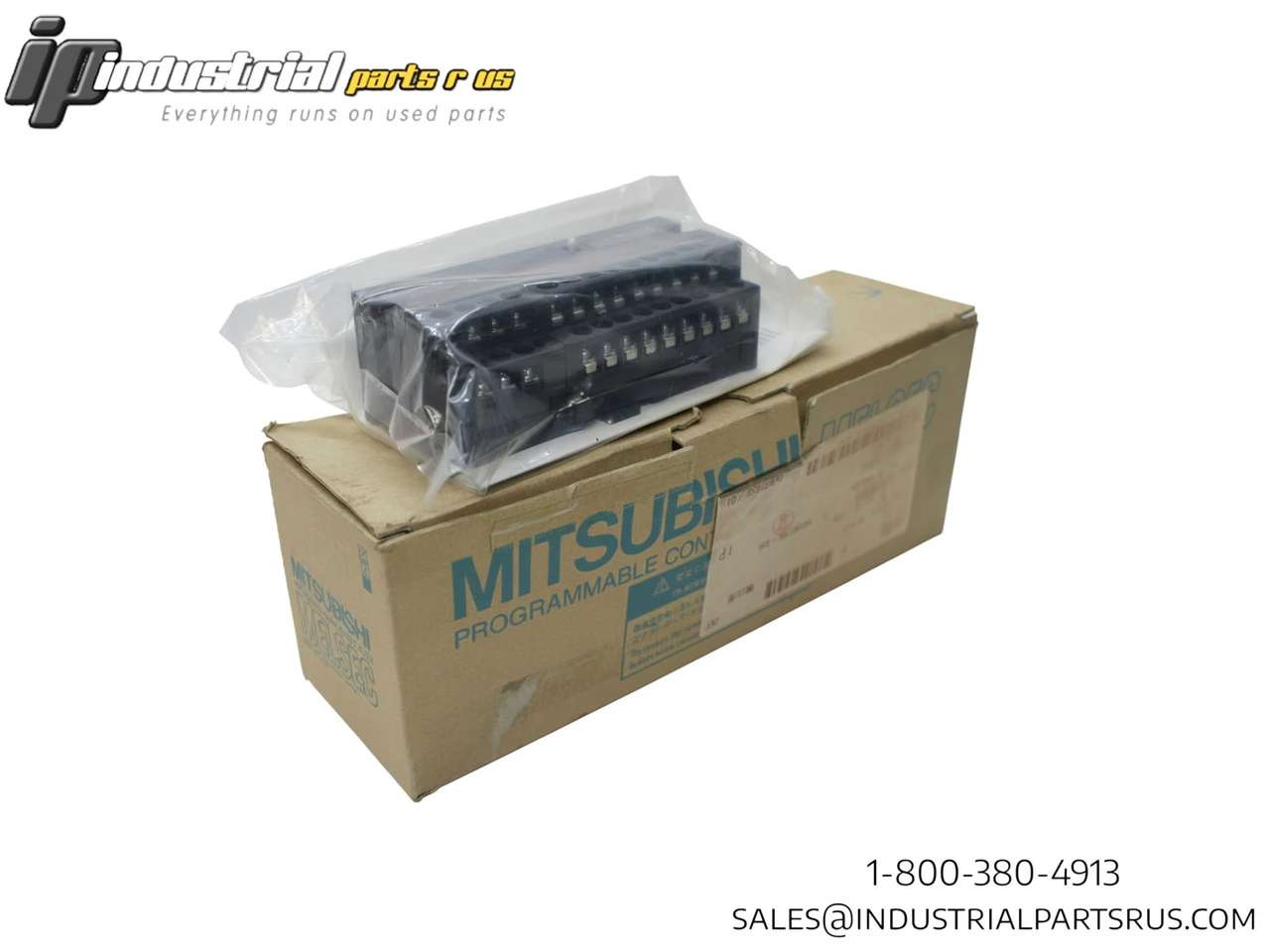

NEW MITSUBISHI AJ65SBT-64AD

The Mitsubishi AJ65SBT-64AD is a CC-Link analog-to-digital converter module designed for use as a remote device station in CC-Link systems. This compact I/O module provides 4 channels of analog input conversion with high accuracy and features voltage input range of -10 to +10VDC and current input range of 0 to +20mA DC with 16-bit signed binary digital output.
Specification
Value
Brand
Mitsubishi
Model/Part Number
AJ65SBT-64AD
Product Type
CC-Link Analog-to-Digital Converter
Controller Platform
MELSEC-A
Input Points
4 channels
Analog Input Voltage
-10 to +10VDC
Voltage Input Resistance
1MΩ
Analog Input Current
0 to +20mA DC
Current Input Resistance
250Ω
Digital Output
16-bit signed binary (-4096 to +4095)
Conversion Type
Analog to Digital
Conversion Speed
1ms/channel
Power Consumption
2.4W max
Station Type
Remote device station (Ver.1)
Communication System
CC-Link
Withstand Voltage
AC 500V 1 minute
Terminal Connections
M3 screw terminals
Weight
0.45 lbs
We warranty all items for 30 days from date of purchase.

SKU: AI0168
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
Communications: CC-Link
GTIN: 679523686161
Full Load Amps: 250Ω
Manufacturer: Mitsubishi
Part Number: AJ65SBT-64AD
Controller Platform: MELSEC-A
Shelf: K-32
Model: AJ65SBT-64AD
MPN: AJ65SBT-64AD
Type: I/O Module
