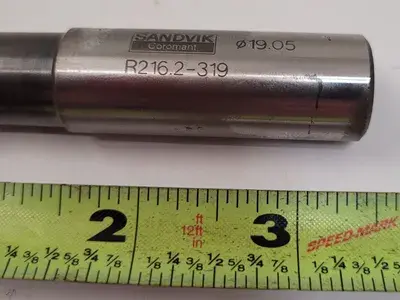

USED SANDVIK COROMANT R216.2-319

THE SANDVIK COROMANT R216.2-319 U-MAX IS A SQUARE SHOULDER END MILL CUTTER WITH A 90° TOOL CUTTING EDGE ANGLE AND A 0.75-INCH CUTTING DIAMETER. IT FEATURES A MAXIMUM RAMPING ANGLE OF 90° AND A MAXIMUM PLUNGE DEPTH OF 0.5906 INCHES. THE CUTTER HAS A PERIPHERAL EFFECTIVE CUTTING EDGE COUNT OF 1. THE CONNECTION TO THE MACHINE SIDE IS A 3/4-INCH WELDON (DIN6535-HB). IT IS A RIGHT-HAND TOOL WITH A FUNCTIONAL LENGTH OF 3.5 INCHES AND AN OVERALL LENGTH OF 3.5 INCHES. THE RADIAL RAKE ANGLE IS -8°, AND THE AXIAL RAKE ANGLE IS 3°. THIS TOOL HAS A MAXIMUM ROTATIONAL SPEED OF 15,120 1/MIN AND A TORQUE OF 1.4751 FTLBF.
