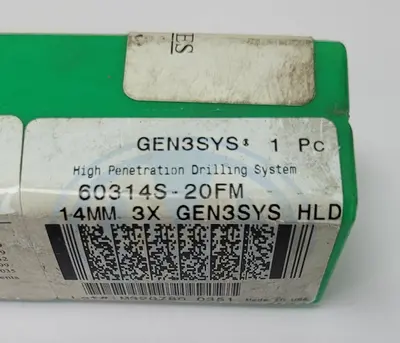

NEW ALLIED MACHINE AND ENGINEERING 60314S-20FM

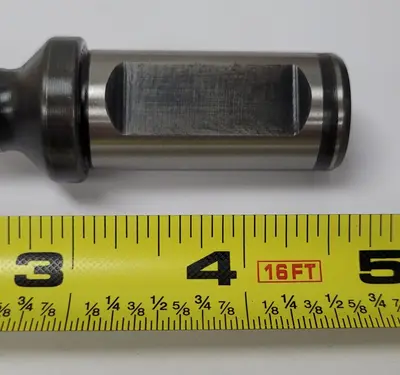

THE ALLIED MACHINE & ENGINEERING 60314S-20FM IS A STRAIGHT FLUTE INDEXABLE SPADE DRILL WITH A FLANGED SHANK TYPE. IT HAS A BODY LENGTH OF 72.4MM AND AN OVERALL LENGTH OF 122.4MM. THE DRILL IS DESIGNED FOR A DRILL DEPTH OF 45MM, CORRESPONDING TO A LENGTH TYPE OF 3XD, AND FEATURES A TOOL REFERENCE LENGTH OF 75MM. THE OPERATING DIAMETER RANGE IS 14MM (0.5512") MINIMUM TO 14.99MM (0.5905") MAXIMUM. IT BELONGS TO THE SERIES 14. THE SHANK HAS A 20.00MM DIAMETER AND 50MM LENGTH. COOLANT IS SUPPLIED VIA A TSC REAR COOLANT INLET STYLE, AND THE DESIGN INCLUDES A FLAT FOR SECURING. A 1/8 (BSP) PIPE TAP REAR CONNECTION IS ALSO PRESENT.
