NEW SANDVIK COROMANT 880-D2300C4-03

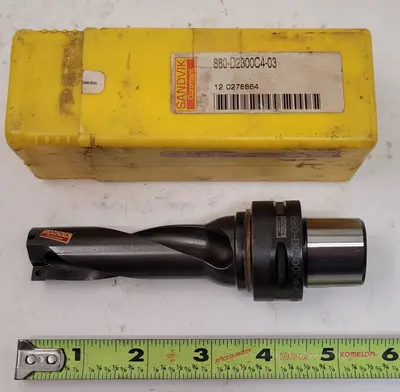

The Sandvik Coromant 880-D2300C4-03 is an indexable insert drill with a maximum drill diameter of 23.00 mm (0.9449 decimal inch) and a maximum drill depth of 69.45 mm (2.8524 decimal inch). It features a modular connection shank with a diameter of 40.00 mm (1.5748 decimal inch) and a length of 24.45 mm (0.9628 decimal inch). The drill is designed with two inserts and utilizes a right-hand cutting direction. Its maximum drill depth range is 50.00 to 75.00 mm (2.0000 to 3.0000 decimal inch). The flute length measures 72.00 mm (3.3622 decimal inch), and the body length is 110.55 mm (2.8346 decimal inch).
