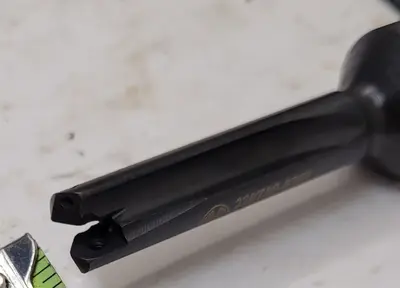

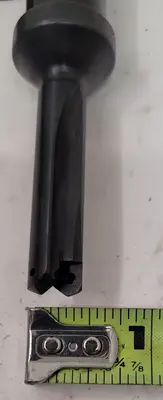

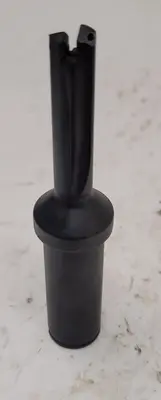

USED ALLIED MACHINE AND ENGINEERING 220Z0S-075F T-A - SERIES Z

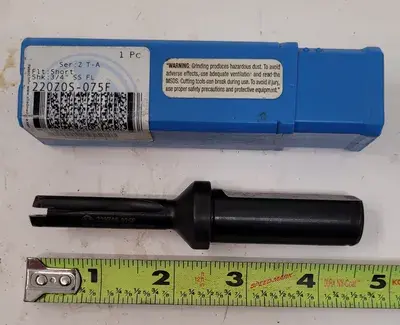

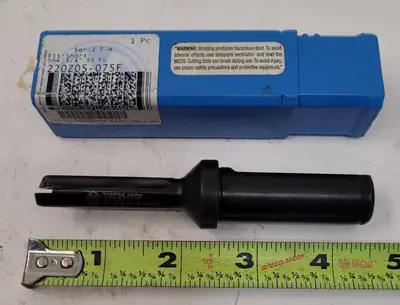

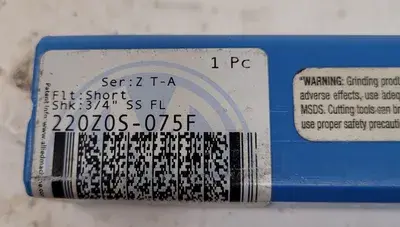

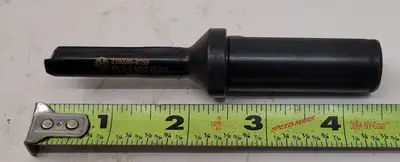

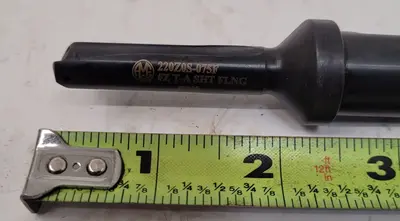

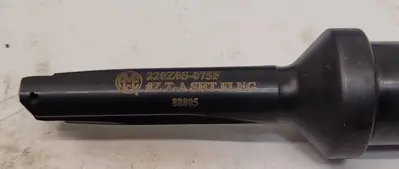

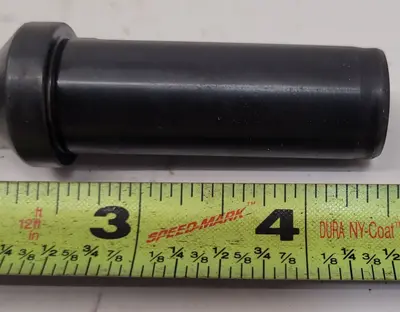

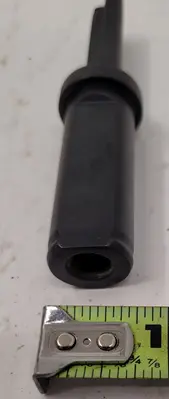

THE ALLIED MACHINE 220Z0S-075F T-A - SERIES Z IS A FLANGED SHANK STRAIGHT FLUTE HOLDER DESIGNED FOR GENERAL PURPOSE DRILLING APPLICATIONS. CONSTRUCTED FROM STEEL, THIS TOOL FEATURES A FLATTED SHANK WITH A 3/4-INCH DIAMETER AND A SHORT LENGTH TYPE. THE OVERALL LENGTH MEASURES 4-7/16 INCHES. IT IS COMPATIBLE WITH DRILL DIAMETERS RANGING FROM A MINIMUM OF 7/16 INCH TO A MAXIMUM OF 1/2 INCH, WITH A MAXIMUM DRILL DEPTH OF 1-1/4 INCHES. THIS HOLDER IS PART OF THE T-A Z SERIES AND HAS A STRAIGHT FLUTE TYPE WITH A 1-1/4 INCH FLUTE LENGTH. THE BODY LENGTH IS 2-13/32 INCHES, AND THE SHANK LENGTH IS 2-1/32 INCHES. COOLANT ENTRY IS FACILITATED BY A 1-AXIAL CONCENTRIC ENTRY STYLE CODE WITH A COOLANT HOLE THREAD SIZE OF 1/8. THE SPADE DRILL LENGTH IS CLASSIFIED AS SHORT.
