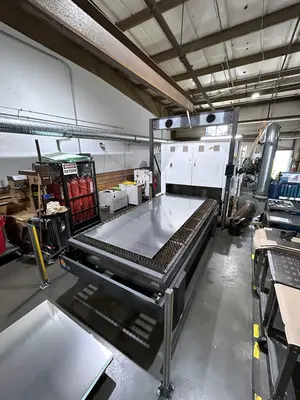

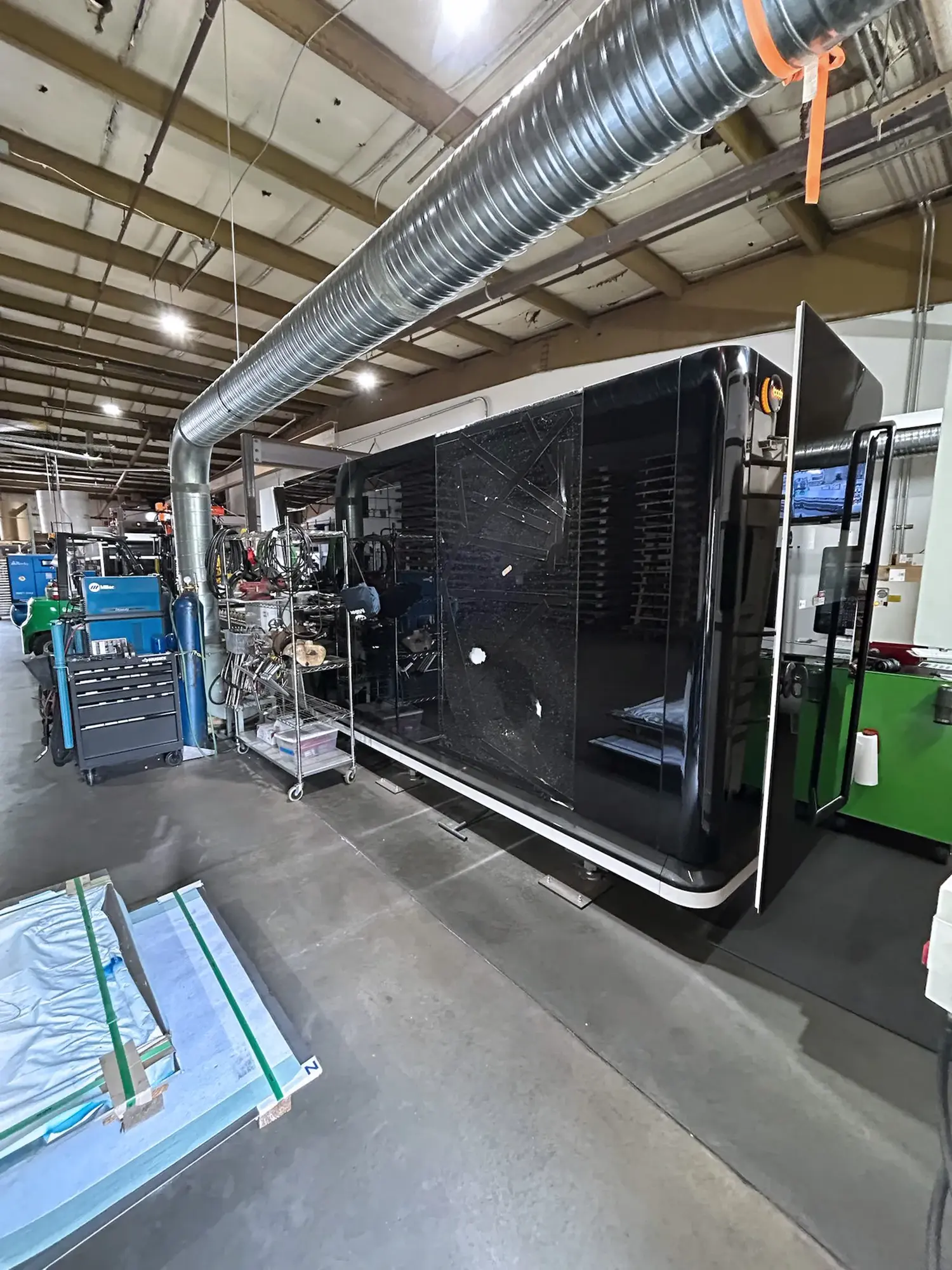

USED 2023 BODOR P3-CU 12KW FIBER
Overview
Description
Less than 500 Beam On Hours - Under Power and Available for Inspection
The 2023 Bodor P3-CU 12kW Fiber Laser with advanced BodorThinker CNC control delivers high-speed, high-precision metal sheet cutting for demanding industrial environments. Engineered for heavy-duty fabrication, it processes carbon steel, stainless steel, aluminum, brass, and alloys with ease. Ideal for automotive manufacturing, heavy metal fabrication, and sheet metal production.
Specifications
Pallet Size: 120" x 60""
X-Travel: 120.00"
Y-Travel: 60.00"
Z-Travel: 13.80"
Power Source: 12 kW BodorPower fiber laser source
Max Linkage Speed: 7,874 in/min
Max Acceleration: 4.0 G (High Dynamic Motion)
Max Shuttle Table Load: Up to 3,200lb
Dimensions: Approx. 391.2″ x 120″ x 90″
Weight: 18,298.4 lbs
Equipped With

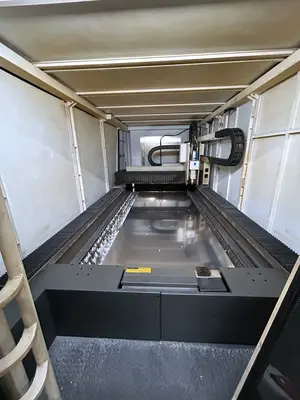

5'x10' Shuttle Table
12kW Bodor Power resonator
Bodor Genius Auto focus laser head

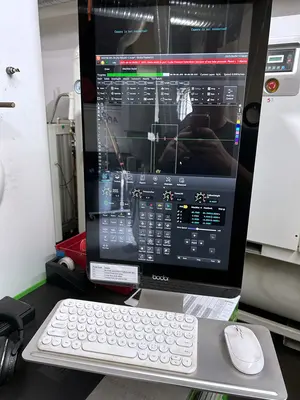

Bodor Thinker 3.0 control system

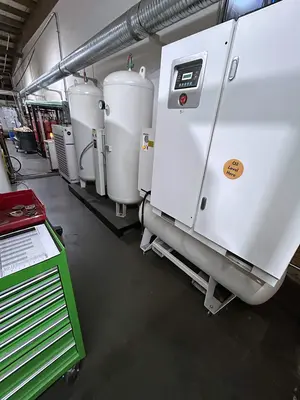

Air Compressor
Light Curtain
