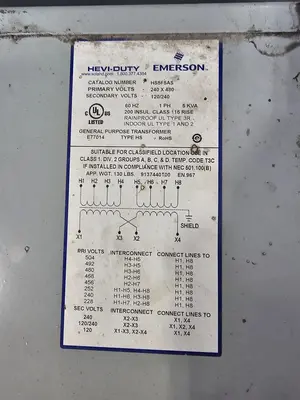

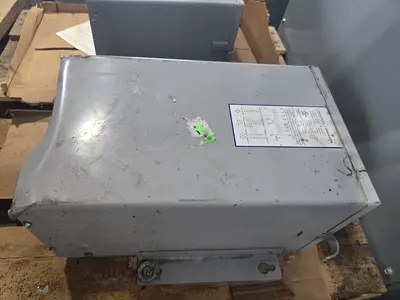

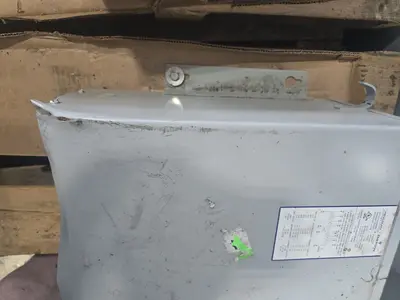

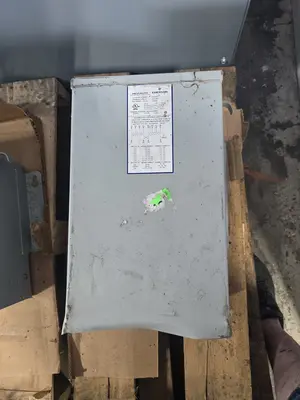

THE EMERSON SOLA HD HS5F5AS IS AN ENCAPSULATED NON-VENTILATED TRANSFORMER FROM THE HS5 SERIES. IT FEATURES A 5 KVA POWER RATING AND OPERATES AS A SINGLE-PHASE UNIT WITH A FREQUENCY RATING OF 60 HZ. THE PRIMARY VOLTAGE IS 240/480 VAC, AND THE SECONDARY VOLTAGE IS 120/240 VAC. MAXIMUM AMPERAGE RATING IS 20.8/10.4 A FOR THE PRIMARY AND 41.6/20.8 A FOR THE SECONDARY. IT HAS A 200 DEG C INSULATION CLASS AND A 115 DEG C TEMPERATURE RATING. THE TRANSFORMER IS HOUSED IN A ROLLED STEEL NEMA 3R ENCLOSURE, SUITABLE FOR WALL MOUNTING, AND UTILIZES LEAD WIRE OR WIRE LEAD CONNECTION TYPES. DIMENSIONS ARE 7 INCHES L X 10 INCHES W X 12 INCHES H.
