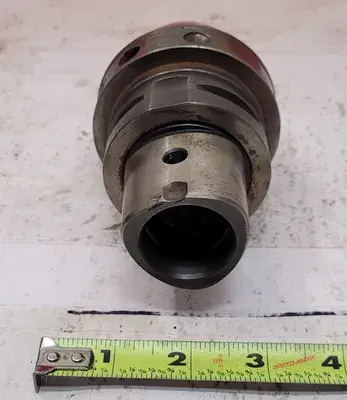

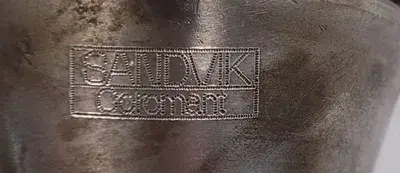

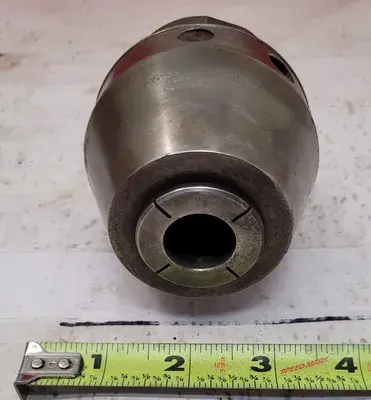

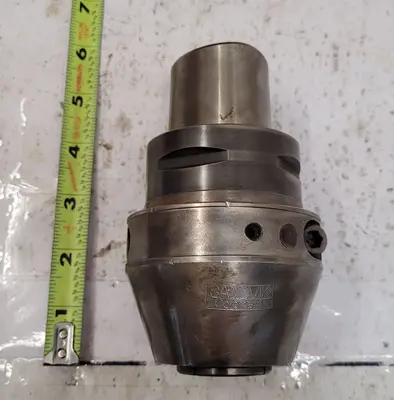

USED SANDVIK COROMANT C6-391.CGA-32 084

This item is a Sandvik Coromant C6-391.CGA-32 084 precision chuck, designed with an adaptive interface machine direction (ADINTMS) of Coromant Capto (bolt and segment clamping) -size C6. The adaptive interface workpiece direction (ADINTWS) is a hydraulic membrane chuck -metric: 32. Key specifications include a maximum rotational speed (RPMX) of 25000 1/min and a maximum torque (TQ) of 6 Nm. It adheres to the ISO26623-1 standard. The chuck features a coolant entry style code (CNSC) 3 for axial concentric and radial entry, and a coolant exit style code (CXSC) 1 for axial concentric exit, supporting a maximum coolant pressure (CP) of 80 bar. The connection diameter (DCON) is 32 | 63 mm, with a functional diameter (DFC) of 44 mm and a functional length (LF) of 84 mm. Body dimensions include body diameter 1 (BD1) at 47.8 mm, body diameter 2 (BD2) at 69.5 mm, body length 1 (LB1) at 40.5 mm, and body length 2 (LB2) at 84 mm. Body half taper angles are 15 degrees (BHTA1) and 0 degrees (BHTA2).
