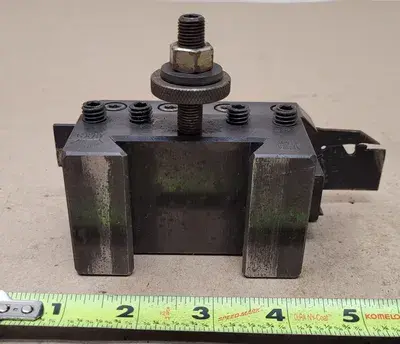

USED ALORIS CXA 1

THE ALORIS CXA 1 LATHE TOOL POST HOLDER IS DESIGNED FOR LATHES WITH A SWING OF 13 TO 18 INCHES. KEY DIMENSIONS INCLUDE AN OVERALL HEIGHT OF 2-1/8 INCHES AND AN OVERALL LENGTH OF 3-1/2 INCHES. IT ACCOMMODATES A MAXIMUM CUTTING TOOL SIZE OF 3/4 INCH, WITH A CENTERLINE HEIGHT OF 1-7/16 INCHES AND A TOOL BIT RANGE OF 1/4 TO 3/4 INCH. THE HOLDER UTILIZES A 2-1/4 INCH WEDGE AND DOES NOT FEATURE THROUGH COOLANT. INCLUDED COMPONENTS ARE A TUNGALOY CCB812-32-U BLADE HOLDER AND A TUNGALOY CCH32-30U BLADE. THE BLADE FEATURES A SHANK HEIGHT OF 1.26 INCHES AND A SHANK WIDTH OF 0.087 INCHES, WITH A NEUTRAL CUTTING DIRECTION. ITS OVERALL LENGTH (OAL) IS 5.906 INCHES, AND THE MAXIMUM CUTTING DEPTH (CDX) IS 1.969 INCHES. THE BLADE HAS AN INSERT SEAT SIZE CODE (SSC) OF 30, AN OVERALL HEIGHT (OAH) OF 0.969 INCHES, AND A FUNCTIONAL WIDTH (WF) OF 0.118 INCHES. IT SUPPORTS A MAXIMUM WORK PIECE PARTING DIAMETER OF 3.94 INCHES, WITH ALL MEASUREMENTS PROVIDED IN INCHES.
