USED EASOM S200-29-E15-39-99-934-01-05-04

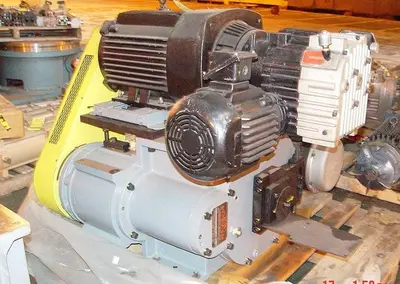

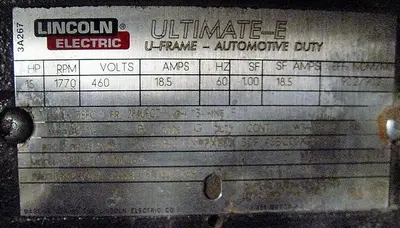

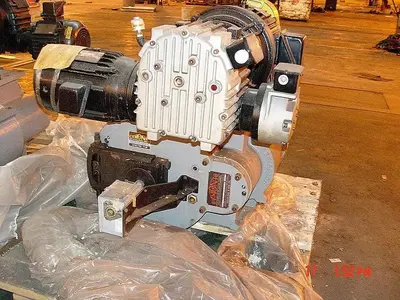

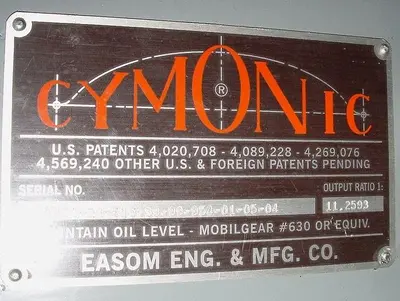

Easom Engineering 15 HP Cymonic Drive15 HP Lincoln Motor | 460V 3-Phase | Heavy Duty Automation | S# S200-29-E15Up for sale is a high-performance Easom Engineering Cymonic Drive, a premier solution for heavy-duty industrial rotary motion. This 15 HP unit is powered by a Lincoln Electric "Ultimate E" motor, engineered for continuous duty in the most demanding manufacturing environments. Designed for precision indexing and high-torque applications, the Cymonic drive system is the industry standard for large-scale automation and robotic turntables. This unit offers significant savings over new factory pricing and is available for immediate shipment.Tech SpecsModel: S200-29-E15-39-99-934-01-05-04Horsepower: 15 HPMotor: Lincoln Electric "Ultimate E" MotorPower Requirements: 460 Volt, 3-Phase, 60 HzCurrent Rating: 18.5 Amps (Service Factor: 1.0 @ 18.5 SF Amps)Spindle Speed: 1,770 RPMDuty Cycle: Continuous DutyApproximate Weight: 5,000 lbs (2,268 kg)Application: Large-scale industrial turntables and positionersKey Selling PointsHigh-Torque Performance: The 15 HP motor provides reliable, high-torque output for rotating heavy loads with pinpoint accuracy.Lincoln Electric Reliability: Built with the "Ultimate E" motor series, known for energy efficiency and long-term durability in 24/7 production settings.Standard Industrial Power: Wired for 460V 3-phase, making it ready for integration into most major North American manufacturing facilities.Rugged Construction: With an approximate weight of 5,000 lbs, this drive is built with the structural rigidity required for massive robotic slides and positioners.

* Horsepower: 15 HP
* Spindle Speed: 1,770 RPM
* Duty Cycle: Continuous Duty
* Approximate Weight: 5,000 lbs (2,268 kg)
