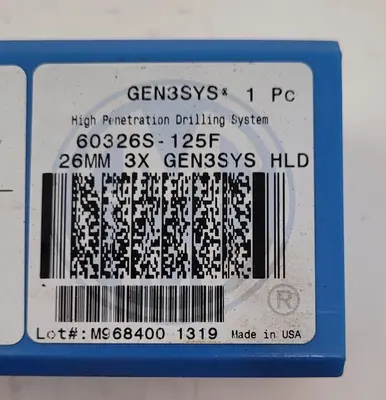

NEW ALLIED MACHINE AND ENGINEERING 60326S-125F

THE AMEC 60326S-125F IS A 26 SERIES STRAIGHT FLUTE INDEXABLE SPADE DRILL, IDENTIFIED AS A REPLACEABLE DRILL BODY. IT HAS A MINIMUM DIAMETER OF 26.00MM (1.0236 IN) AND A MAXIMUM DIAMETER OF 28.99MM (1.1416 IN). THE DRILL DEPTH IS 3-27/64 INCHES, CORRESPONDING TO A 3XD LENGTH TYPE. KEY DIMENSIONS INCLUDE A BODY LENGTH OF 5-1/16 INCHES AND AN OVERALL LENGTH OF 7-11/32 INCHES. THE UNIT FEATURES A 31.75MM (1-1/4 INCH) FLANGED SHANK WITH A LENGTH OF 2-9/32 INCHES AND A FLAT. IT IS DESIGNED WITH A REAR COOLANT INLET STYLE (TSC) AND A 1/8 INCH (NPT) PIPE TAP REAR. THE TOOL REFERENCE LENGTH IS 5-11/64 INCHES.
