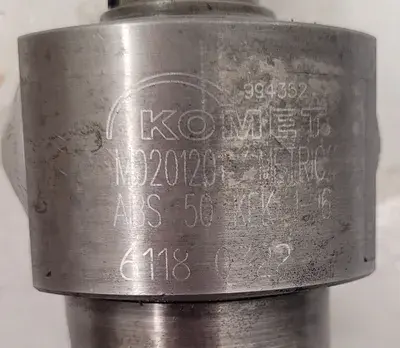

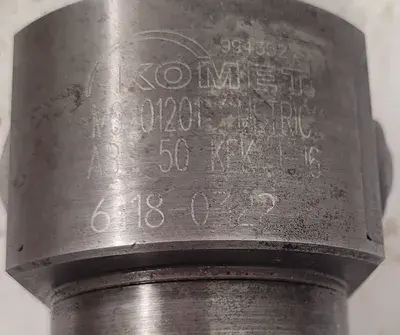

USED KOMET M0201201 - ABS 50 KFK 1-16

THE KOMET M0201201 - ABS 50 KFK 1-16 IS A METRIC MICRO ADJUSTABLE FINISH BORING HEAD DESIGNED FOR PRECISION BORING OPERATIONS. IT FEATURES AN ABS 50 CONNECTION AS THE MACHINE INTERFACE AND A KFK 1-16 CONNECTION INTERFACE. THE TOOL IS COMPATIBLE WITH A CAT50 HOLDER. TECHNICAL SPECIFICATIONS INCLUDE A RADIAL ADJUSTMENT RANGE OF -0.25 TO 5 MM, WITH AN ADJUSTMENT ACCURACY OF 0.01 MM PER GRADUATION AND 0.002 MM WITH A VERNIER. KEY DIMENSIONS ARE: CLAMPING DIAMETER OF 0.6299 INCH (16 MM), MOUNTING SPIGOT DIAMETER OF 1.1024 INCH (28 MM), BODY DIAMETER MAXIMUM OF 2.3622 INCH (60 MM), FLANGE DIAMETER OF 1.9685 INCH (50 MM), PROTRUDING LENGTH OF 2.6378 INCH (67 MM), CLAMPING LENGTH MAXIMUM (MACHINE SIDE) OF 1.563 INCH (39.7 MM), AND AN OVERALL LENGTH OF 3.8583 INCH (98 MM). THE ADJUSTMENT PATH IS UP TO 0.197" (5 MM).
