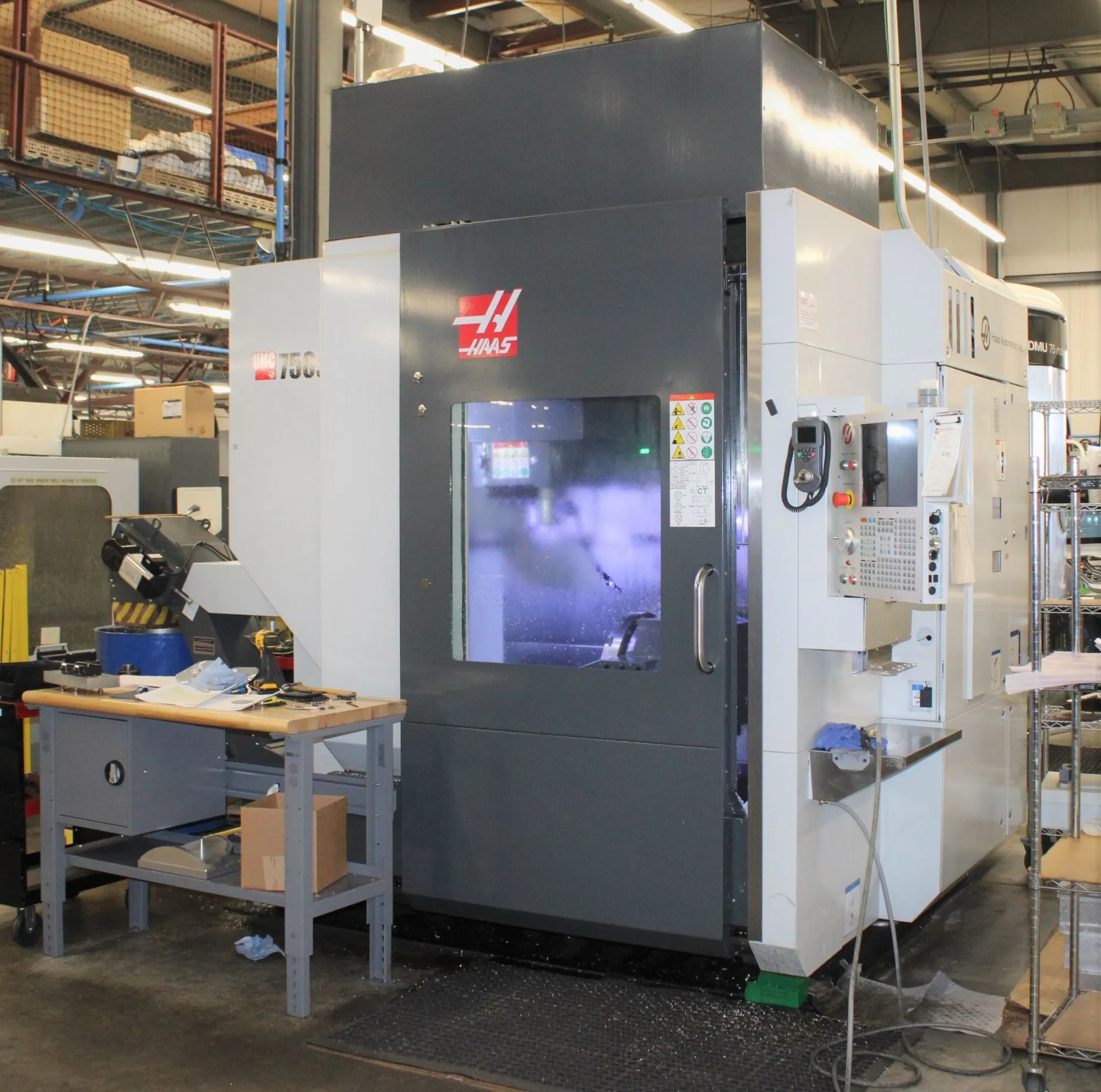

USED 2017 HAAS UMC-750SS

2017 Haas UMC 750SS - 15,000 RPM Spindle, 40 SMTC, Wireless Intuitive Probing System, Thru Spindle Coolant

Travels
X Axis 30.00 in
Y Axis 20.00 in
Z Axis 20.00 in
Spindle Nose to Platter (~ max) 24.0 in
Spindle Nose to Platter (~ min) 4.0 in

Spindle
Max Rating 30.0 hp 22.4 kW
Max Speed 15000 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Taper CT40
Bearing Lubrication Air / Oil Injection
Cooling Liquid Cooled

B Axis - Tilt
Travel 120 ° to 35- °
Max Speed 170 °/sec
Torque (Continuous) 2240 ft-lbf
Brake Torque 2000 ft-lbf

C Axis - Rotation
Travel 360 °
Max Speed 179 °/sec
Torque (Continuous) 1854 ft-lbf
Brake Torque 900 ft-lbf
Max Part Swing 27.0 in

Platter
Platter Diameter 19.70 in
Max Weight on Platter 660 lb
Max Weight on Platter w/Pallet Pool 200 lb
T-Slot Width 0.626 in to 0.630 in
Number of Std T-Slots 7
T-Slot Center Distance 2.48 in

Feedrates
Max Cutting 650 ipm
Rapids on X 1200 ipm
Rapids on Y 1200 ipm
Rapids on Z 1200 ipm
Axis Motors
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf

Tool Changer
Type SMTC
Capacity 40+1
Max Tool Diameter (full) 2.5 in
Max Tool Diameter (adjacent empty) 5.0 in
Max Tool Length (from gage line) 12 in
Max Tool Weight 12.0 lb
Tool-to-Tool (avg) 1.80 s
Chip-to-Chip (avg) 2.40 s

General
Coolant Capacity 55 gal

Air Requirements
Air Required 4 scfm @ 100 psi
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi

15,000 RPM Spindle
40+1 SMTC
Wireless Intuitive Probing System
Through Spindle Coolant
Chip Conveyor
Media Display
Ethernet Interface
Rigid Tapping
High Speed Machining
Dynamic Work Offsets and Tool Center Point Control
Remote Jog Handle

*Specifications Subject to Buyer Verification.
