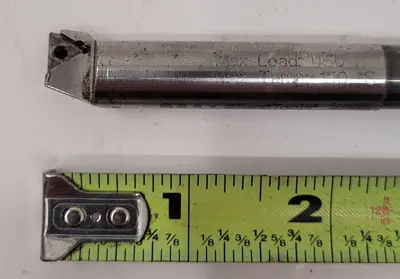

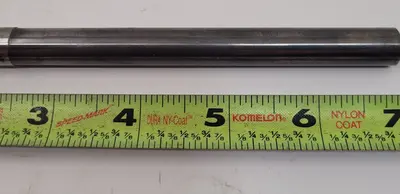

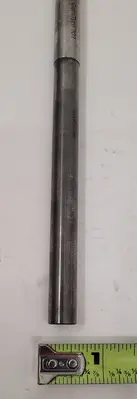

USED SANDVIK COROMANT F12Q-STFCL 09-R

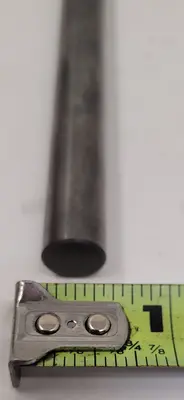

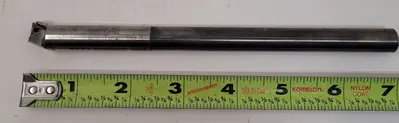

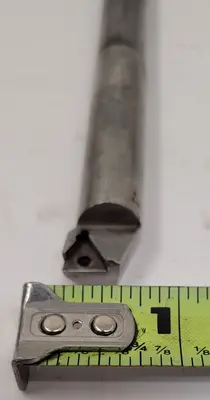

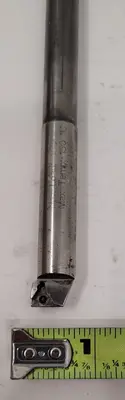

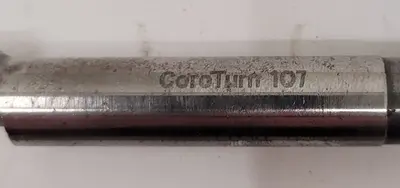

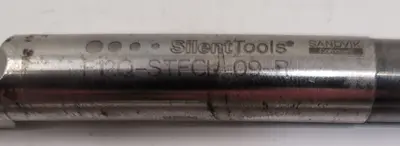

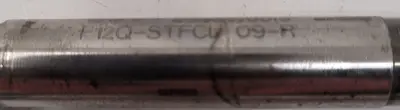

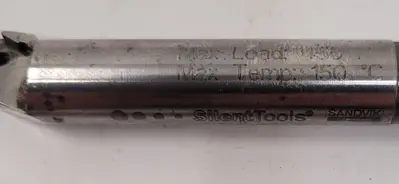

THIS SANDVIK COROMANT F12Q-STFCL 09-R COROTURN 107 BORING BAR IS A SILENT TOOL DESIGNED FOR LEFT-HAND OPERATIONS. IT FEATURES A MINIMUM BORE DIAMETER OF 0.6299 INCH, A FUNCTIONAL LENGTH OF 7.0866 INCH, AND AN OVERALL LENGTH (OAL) OF 7.0866 INCH. THE BODY DIAMETER IS 0.4724 INCH, AND THE FUNCTIONAL WIDTH IS 0.3543 INCH. THE BAR OFFERS A MINIMUM OVERHANG OF 2.8346 INCH AND A MAXIMUM OVERHANG OF 4.7244 INCH. BOTH THE WORKPIECE SIDE BODY ANGLE AND THE MACHINE SIDE BODY ANGLE ARE 0 DEGREES. IT UTILIZES TCMT 090204 INSERT TYPE WITH A CLAMPING TYPE CODE OF 'CLAMP WITH SCREW THROUGH HOLE.' THE TOOL CUTTING EDGE ANGLE IS 91 DEGREES, AND THE LEAD ANGLE IS -1 DEGREE. THE INSERT SEAT SIZE CODES ARE 09 (METRIC) AND 7/32 (IMPERIAL VIEW).
