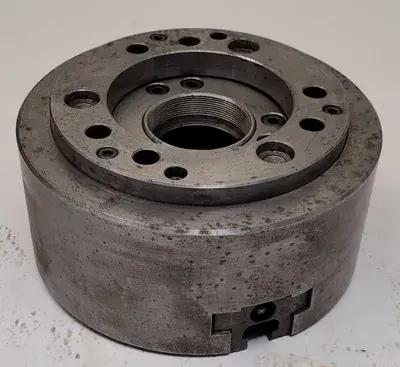

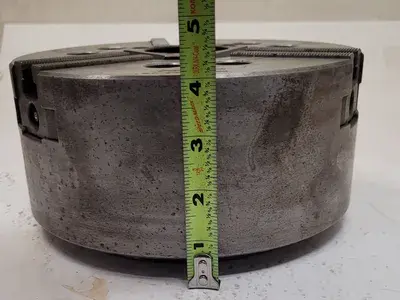

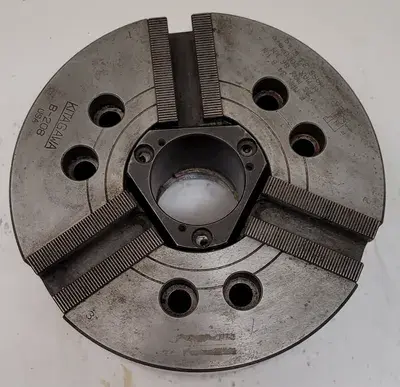

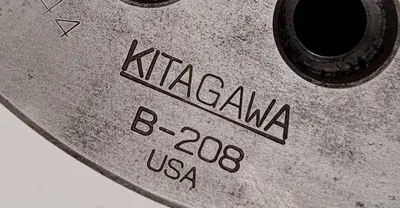

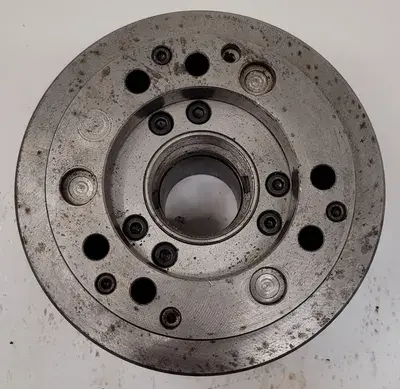

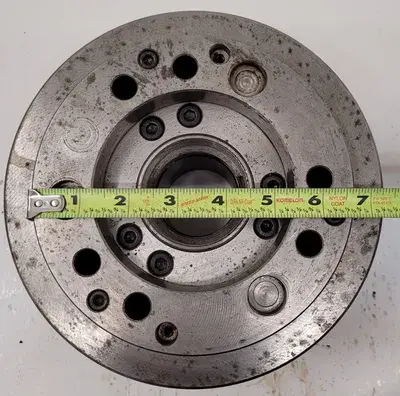

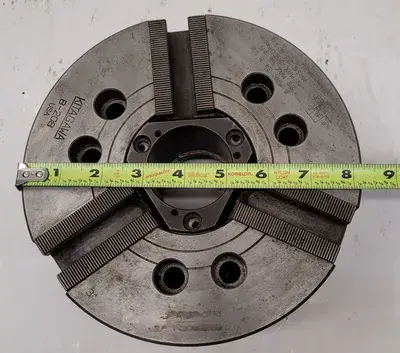

USED KITAGAWA B-208 3 JAW CHUCK

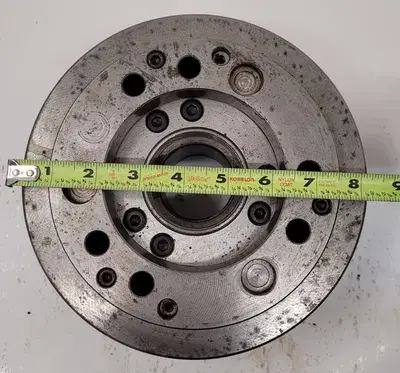

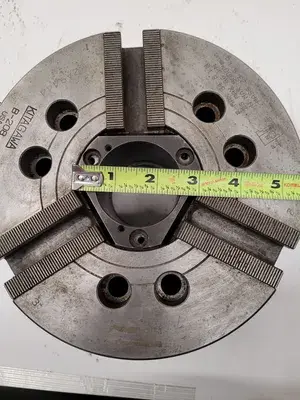

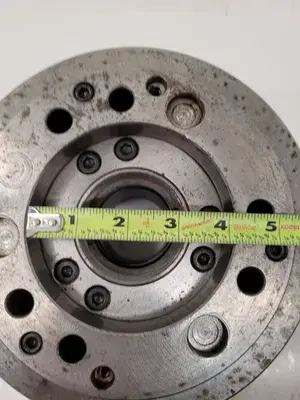

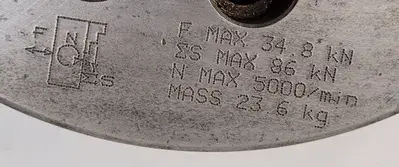

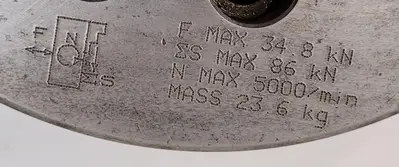

THE KITAGAWA B-208 IS A 3-JAW, 8.25-INCH OVERALL DIAMETER, OPEN CENTER POWER LATHE CHUCK. IT FEATURES A 52MM THROUGH-HOLE AND A MAXIMUM GRIPPING RANGE OF 210MM, WITH A MINIMUM RANGE OF 13MM. THE JAW STROKE (DIAMETER) IS 7.4MM, AND THE PLUNGER STROKE IS 16MM. THIS CHUCK IS RATED FOR A MAXIMUM SPEED OF 5000RPM AND HAS A MAXIMUM GRIPPING FORCE OF 86 KN (8769 KGF). THE MAXIMUM DRAW BAR PULL FORCE IS 34.8KN (3549 KGF). IT WEIGHS 22.3KG (WITH SOFT JAWS) AND HAS A MOMENT OF INERTIA OF 0.170 KG.M². THE MAXIMUM PRESSURE IS 2.65 MPA (27 CM²). MATCHING COMPONENTS INCLUDE THE S1552 CYLINDER, HB08A1 HARD TOP JAW, AND SB08B1 SOFT TOP JAW.
