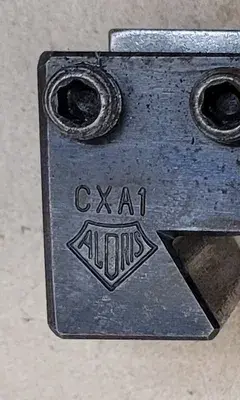

USED ALORIS CXA 1

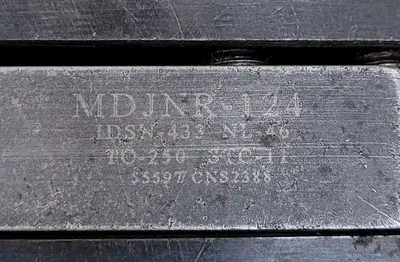

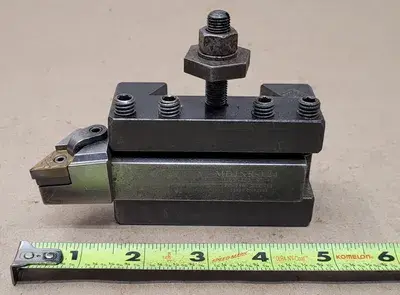

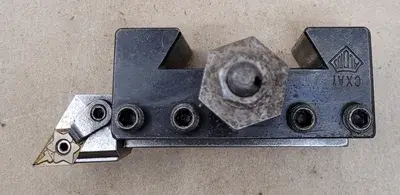

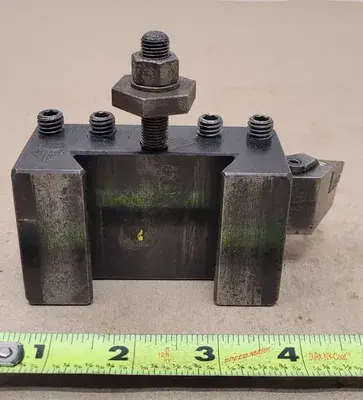

THE ALORIS CXA 1 LATHE TOOL POST HOLDER HAS A 2-1/4 INCH WEDGE AND IS DESIGNED FOR LATHES WITH A SWING OF 13 TO 18 INCHES. THE OVERALL HEIGHT IS 2-1/8 INCHES, AND THE OVERALL LENGTH IS 3-1/2 INCHES. IT ACCOMMODATES A MAXIMUM CUTTING TOOL SIZE OF 3/4 INCH AND HAS A CENTERLINE HEIGHT OF 1-7/16 INCHES. THE TOOL BIT RANGE IS 1/4 TO 3/4 INCHES. THE UNIT INCLUDES AN MDJNR-124 TOOL WITH A MDJN TOOLHOLDER STYLE AND A RIGHT-HAND HOLDER HAND. THE INSERT COMPATIBILITY IS DN..43. THE SHANK WIDTH AND HEIGHT ARE BOTH 3/4 INCH (0.7500 DECIMAL INCHES). THE TOOL HAS AN OVERALL LENGTH OF 4-1/2 INCHES (4.5000 DECIMAL INCHES), AND IT DOES NOT HAVE THROUGH COOLANT CAPABILITY. IT FEATURES A NEGATIVE RAKE, A RIGHT-HAND CUTTING DIRECTION, AND A RAKE ANGLE OF -6 TO -7 DEGREES. THE CUTTING TOOL APPLICATION IS TURNING, WITH A HEAD LENGTH OF 1.2500 DECIMAL INCHES AND A BACK OF BAR TO CUTTING EDGE MEASUREMENT OF 1.0000 DECIMAL INCHES.
