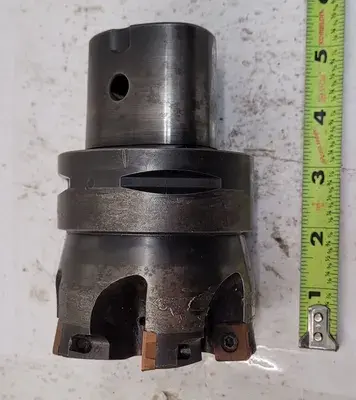

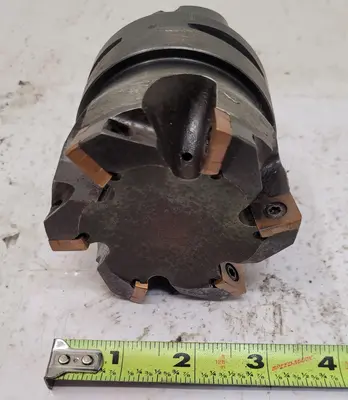

USED SANDVIK COROMANT R210-086C8-14H

The Sandvik Coromill 210 face mill cutter, part number R210-086C8-14H, is designed for right-hand operation with a maximum rotational speed of 14,700 RPM. This tool features a 10° cutting edge angle (KAPR) and has a cutting diameter (DC) of 2.4409 inches, with a maximum cutting diameter (DCX) of 3.3858 inches. It includes 6 cutting items (CICT_2) and utilizes a clamp with screw through hole clamping type (MTP). The maximum depth of cut is 0.5118 inches (APMX_EFW) or 0.0787 inches (APMX_FFW). The maximum ramping angle (RMPX) is 2.2°, and the maximum plunge depth (AZ) is 0.0787 inches. The cutter has a functional length (LF) of 3.1496 inches, a body diameter (BD) of 3.2146 inches, and a body length (LB) of 3.1496 inches.
