USED SAV 245.02-320

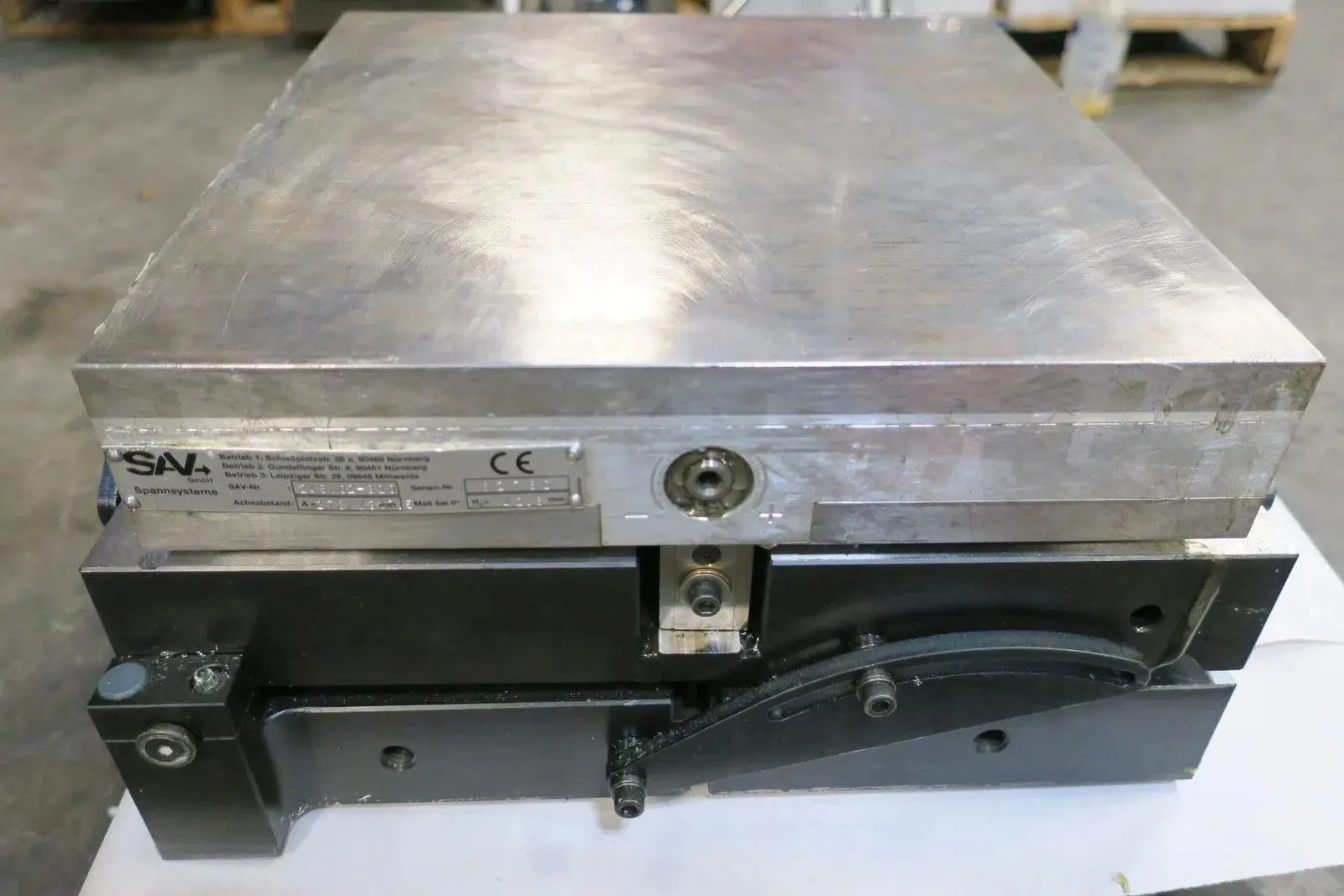

The SAV 245.02-320 precision magnetic sine table measures 320mm x 320mm and features swivel capability about both the longitudinal and transverse axes. Its base plate is constructed from hardened steel (HRC 60), is black-finished, and precision ground. Key technical specifications include an angle precision of ± 5 seconds, planar parallelism of ± 0.005 / 100 mm, and a shimming measure at 0° of 3 mm. The angle range for the longitudinal axis is 0° to 45°, and for the transversal axis, it is 0° to 30°. The table provides a nominal holding force of 80 N/cm2, a pole pitch of 1.9 mm, and a magnetic field height of 6 mm. The pole plate wearing limit is 8 mm. This equipment supports processing types such as flat grinding, circular grinding, milling, turning, drilling, sink erosion, wire erosion, measurement, and automation.
