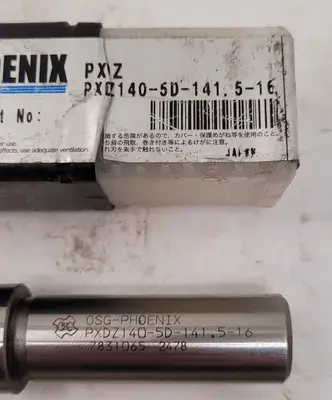

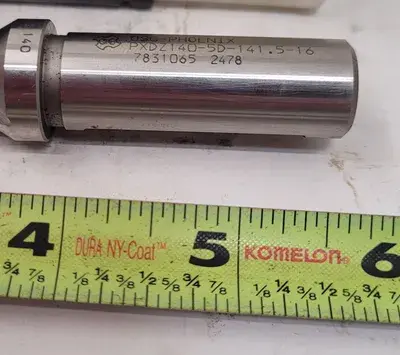

USED OSG PXDZ140-5D-141.5-16

THIS OSG PHOENIX PXDZ140-5D-141.5-16 IS AN EXCHANGEABLE HEAD DRILL FEATURING A TOOL STEEL SUBSTRATE AND A CYLINDRICAL SHANK BODY TYPE. KEY SPECIFICATIONS INCLUDE A DIAMETER MINIMUM (D MIN) OF 14MM AND A DIAMETER MAXIMUM (D MAX) OF 14.49MM. IT HAS A DRILLING DEPTH (L1) OF 71.2MM, A FLUTE LENGTH (FL) OF 92.9MM, AND A PROJECTION LENGTH (L2) OF 97.9MM. THE DRILL HAS A SHANK DIAMETER (D) OF 16MM, A FLANGE DIAMETER (D2) OF 20MM, AND A SHANK LENGTH (L2) OF 48MM. IT FEATURES 2 FLUTES WITH A DRILLING L/D RATIO (XD) OF 5. BOTH THE HELIX DIRECTION AND CUTTING DIRECTION ARE RH, AND IT IS DESIGNED WITH COOLANT THRU CAPABILITIES AND A HEAD SIZE OF 1.
