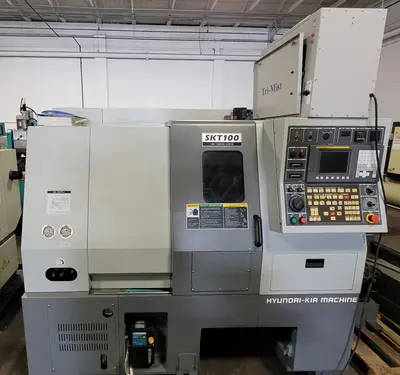

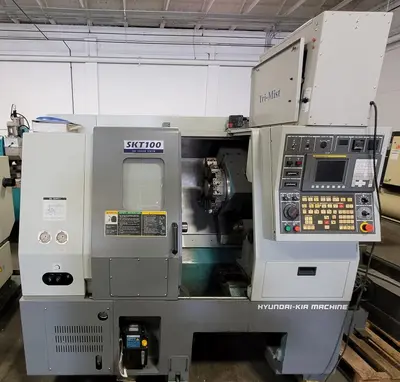

USED 2008 HYUNDAI KIA SKT100

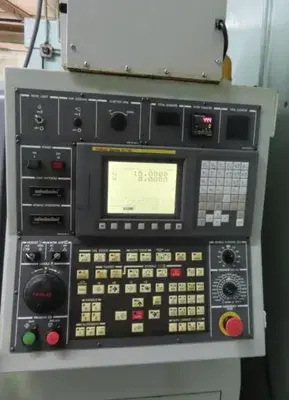

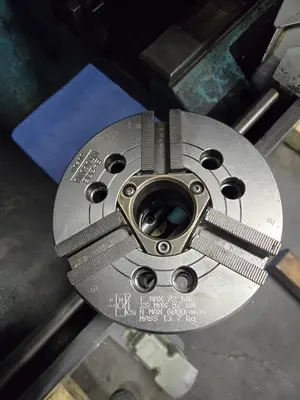

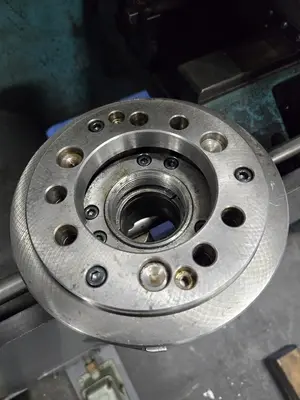

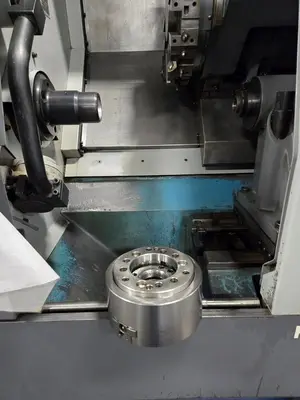

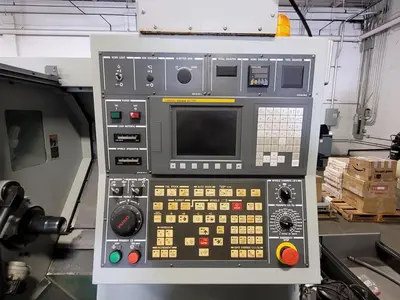

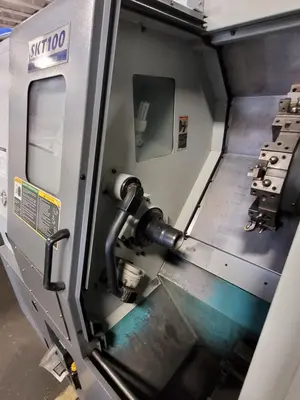

THE HYUNDAI – KIA SKT100 CNC TURNING CENTER IS EQUIPPED WITH FANUC SERIES OI-TC CONTROLS AND A 12-POSITION TURRET. IT FEATURES A KITAGAWA B-206 HYDRAULIC 3-JAW CHUCK WITH A 6-INCH CHUCK SIZE, COLLET CLOSER CHUCK, AND TAILSTOCK. THE MACHINE OFFERS A SWING OVER THE BED OF 21.7 INCHES AND A SWING OVER THE CROSS SLIDE OF 13.8 INCHES, WITH A MAXIMUM TURNING LENGTH OF 11.8 INCHES AND A BAR CAPACITY OF 1.77 INCHES. TRAVEL SPECIFICATIONS INCLUDE 8.3 INCHES ON THE X-AXIS AND 13 INCHES ON THE Z-AXIS.

THE MAIN SPINDLE OPERATES AT A SPEED OF 6000 RPM, FEATURING AN A2-5 SPINDLE NOSE AND A 2.09-INCH SPINDLE BORE, DELIVERING MAXIMUM TORQUE OF 45.9 AND 70.4 FT-LBS. POWER IS SUPPLIED BY A 20.1/14.7 HP MAIN MOTOR VIA A BELT DRIVE. RAPID TRAVERSE RATES ARE 1417 IPM FOR BOTH X AND Z AXES. THE TAILSTOCK FEATURES AN MT#4 QUILL BORE TAPER, A 2.6-INCH QUILL DIAMETER, 3.1 INCHES OF QUILL TRAVEL, AND A TOTAL TAILSTOCK TRAVEL OF 6.3 INCHES. THE UNIT HAS A FOOTPRINT OF 79.5″ X 65.0″ AND WEIGHS 8,377 LBS.
