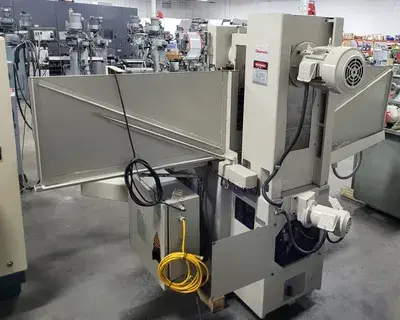

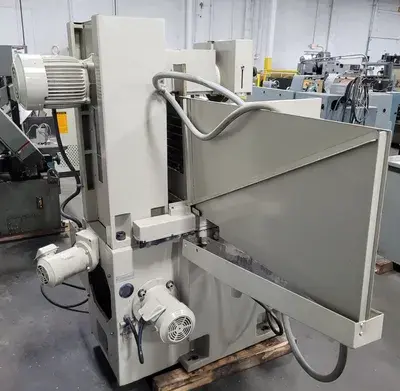

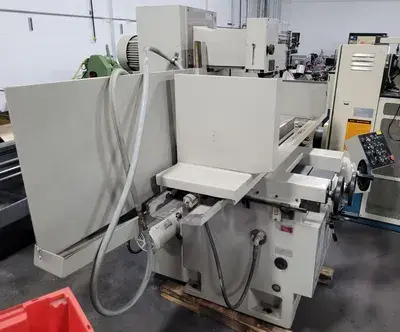

USED 2005 OKAMOTO ACC-12-24ST

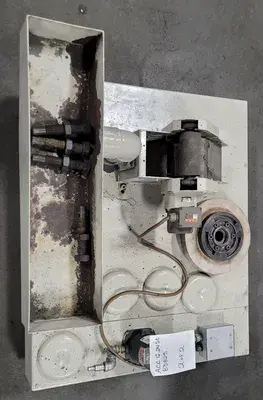

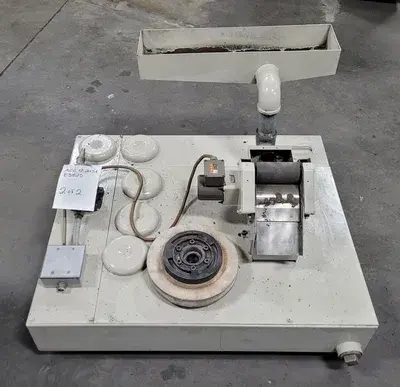

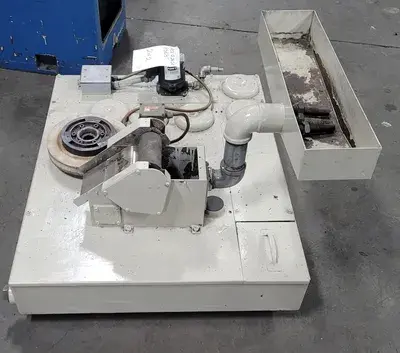

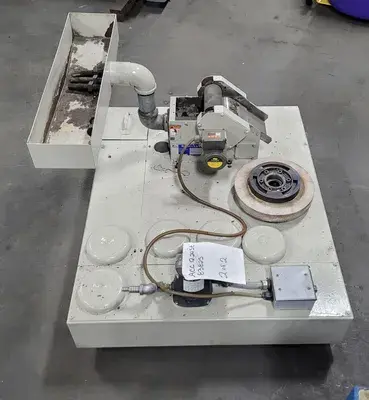

THE OKAMOTO ACC-12-24ST IS A 2005 3-AXIS HYDRAULIC SURFACE GRINDER FEATURING A 12" X 24" ELECTRO-MAGNETIC CHUCK. THIS MACHINE OFFERS A MAX. LONGITUDINAL TABLE TRAVEL OF 29.5" AND A MAX. CROSS TRAVEL OF 13.6". THE MAX. DISTANCE TABLE UNDER 12" DIA. WHEEL IS 13.7". HYDRAULIC TABLE FEED RATE RANGES FROM 1 TO 82 FPM. HYDRAULIC CROSS FEED CAN BE SET IN INCREMENTS FROM .02" TO .8" OR CONTINUOUSLY FROM 4 TO 40 IPM. AUTOMATIC HEAD DOWN FEED PER TABLE STROKE IS ADJUSTABLE FROM .0001" TO .0015". IT ACCOMMODATES A MAX. WHEEL SIZE OF 12" DIA. X 1.5" WIDE X 5" HOLE. POWER IS SUPPLIED BY A 5 HP SPINDLE MOTOR, A 2 HP HYDRAULIC PUMP MOTOR, AND A 1/2 HP WHEEL HEAD TRAVERSE MOTOR, ALL OPERATING ON 3 PHASE, 60 CYCLE, 480 VOLTS. THE MACHINE IS EQUIPPED WITH A COOLANT SYSTEM WITH PAPER FILTRATION. OVERALL MACHINE DIMENSIONS ARE 100" L-R X 76" F-B X 72" H, WITH A WEIGHT OF 4,600 LBS.
