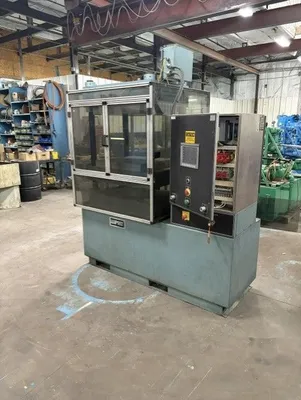

USED PHI 5100R2424S-5CCS-R-Y(2)-58

MODEL #5100R2424S-5CCS-R-Y(2)-58.

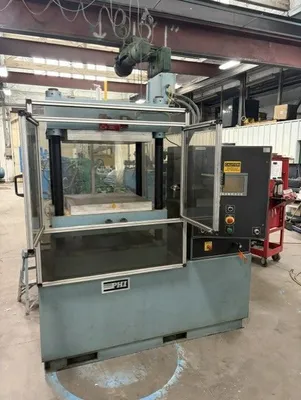

PICTURED and CURRENTLY SET UP WITH FIVE 24.5” X 24.5” X 2” STEAM PLATENS
(Intermediate Platens and Steam Valves being removed)

CLAMP CYLINDER IS: 9” BORE; SINGLE-ACTING WITH APPROX 12” STROKE.
CLEARANCE BETWEEN POSTS IS 27.75” L TO R X 18.5” F TO B.
NOMINAL BED SIZE OF 27.75” X 24.5”.
FULLY GUIDED ON 2.5” DIAMETER TIE RODS WITH 6” BUSHINGS.
OPERATOR HEIGHT IS APPROX 50” (WITH PLATEN).
FORK POCKETS.
FULLY GUARDED.
SELF-CONTAINED HYDRAULIC SYSTEM: 3 HP MOTOR (1200 RPM; 460 VOLT); 1 HP MOTOR (1800 RPM; 460 VOLT); APPROX 20 GALLON RESERVOIR; ADJUSTABLE PRESSURE; ETC…
ELECTRICAL CONTROLS INCLUDE: ALLEN-BRADLEY SLC 500 PLC; RED LION OPERATOR INTERFACE VX500; 2 CLOSE BUTTONS; OPEN; RESET; E-STOP; INTERLOCK ON FRONT DOOR; ETC…
175 PSIG STEAM FOR PLATEN HEATING. 45 GPM WATER AND 50 SCFM AIR FOR OPTIONAL COOLING.

OVERALL DIMENSIONS APPROX 73” X 68” X 102” TALL.
APPROX 10,000 POUNDS.
SOME PRINTS.
