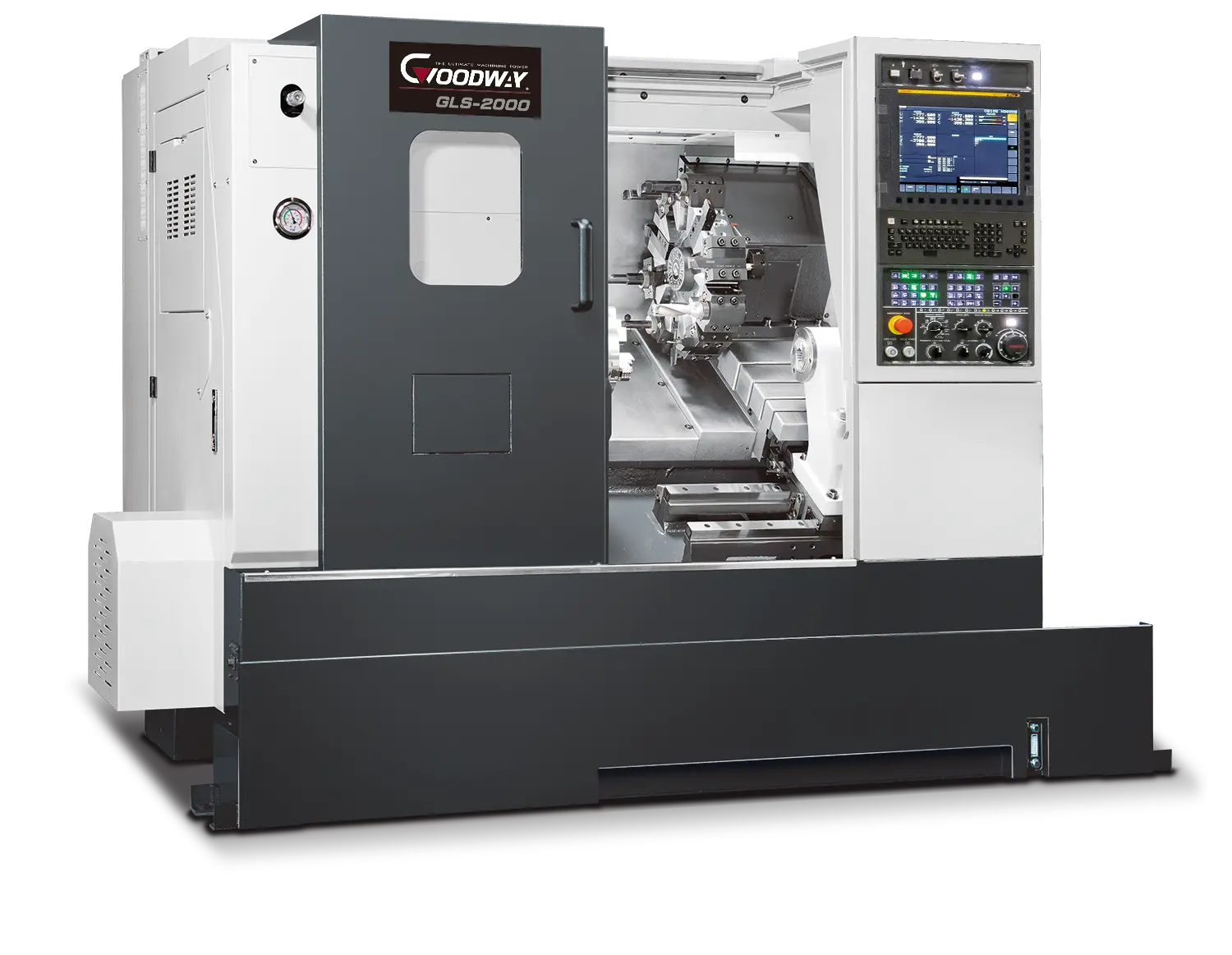

With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
• 30˚ slant-bed design provides smooth chip disposal and easier operator access.
• Steel way covers and special steel wipers molded with industrial-strength rubber are used for durability.
• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
| Max Swing Diameter | 560 mm | 22.047" |
| Swing Over Saddle | 230 mm | 9.0551" |
| Max Turning Diameter | 390 mm | 15.354" |
| Max Turning Length | 530 mm | 20.866" |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 65 mm | 2.5591" |
| Hole Through Spindle | 76 mm | 2.9921" |
| Hydraulic Cylinder | 10" | 254 mm |
| Spindle Nose | A2-6 | A2-6 |
| Spindle Speed | 4,500 RPM | 4,500 RPM |
| Spindle Drive System | Direct Belt Drive | Direct Belt Drive |
| Max. X-Axis Travel | 230 mm | 9.0551" |
| Max. Z1-Axis Travel | 630 mm | 24.803" |
| Live Tooling Stations | 12 | 12 |
| OD Tool Shank Size (Live Tooling) | 20 mm | 0.7874" |
| ID Tool Shank Size (Live Tooling) | 25 mm | 0.9843" |
| Live Tooling Shank Size | Ø16 mm ER25 | Ø16 mm ER25 |
| Live Tooling RPM Range | 4000 RPM | 4000 RPM |
| CN Control | Fanuc 0i-TF Plus | Fanuc 0i-TF Plus |
FANUC 0I-TF PLUS CONTROL WITH 10.4" COLOR LCD
FANUC ALPHA SPINDLE AND SERVO DRIVES
FANUC AC 15 HP (CONT.), 20 HP (30 MIN.), 25 HP (PEAK) DUAL WINDING SPINDLE MOTOR
LINEAR GUIDE WAYS
DIRECT BELT DRIVEN SPINDLE
2-SPEED SPINDLE MOTOR CONFIGURATION
CHUCK (INCLUDING ONE SET OF SOFT JAWS & ONE SET OF HARD JAWS):
12 STATION 12 LIVE SERVO INDEXING TURRET (ER-25) WITH 1” OD AND 1-1/2” ID TOOLING SHANK
STANDARD TOOL HOLDER AND SLEEVES PACKAGE
0 DEGREE LIVE TOOL HOLDERS (COLLET: ER-25) X 1
90 DEGREE LIVE TOOL HOLDERS (COLLET: ER-25) X 1
FULL CS AXIS CONTROL WITH DISK BRAKE
X/Z AXIS FANUC AC 4.0 HP SERVO MOTOR WITH ABSOLUTE ENCODER
UPGRADE TO 132 PSI HIGH PRESSURE COOLANT PUMP (MTH-2/70)
RENISHAW (HPRA) REMOVABLE TOOL SETTER FOR MAIN SPINDLE
SPINDLE ORIENTATION - 1 DEGREE INDEXING
USER DEFINABLE MACRO
TAILSTOCK WITH PROGRAMMABLE Non-Rotating QUILL (MT#4)
3 COLOR TOWER SIGNAL
UPGRADE CHIP PAN TO 47” SIDE DISCHARGE CHIP CONVEYOR
OIL SKIMMER
CHIP PAN
THREE COLOR OPERATION STATUS SIGNAL LIGHT TOWER
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFETY SWITCH
PROGRAM PROTECT
CHUCK CLAMP/UNCLAMP CONFIRMATION
TOOLBOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
OPERATION & MAINTENANCE MANUALS
