| Swing | 18" | 457.2 mm |
| Machining Length | 40" | 1,016 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (Bridgeport BPCT CNC Control) | CNC (Bridgeport BPCT CNC Control) |

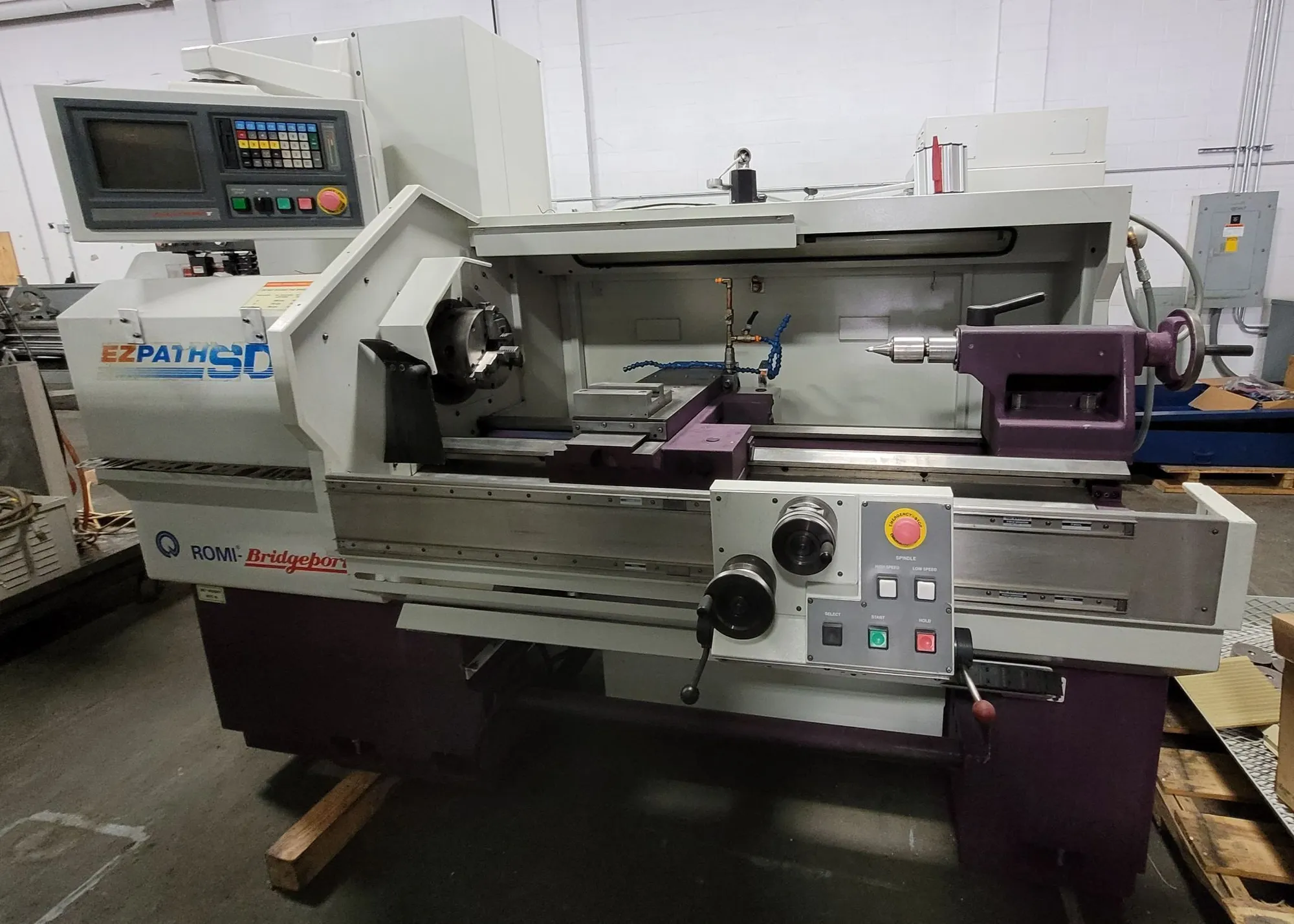

BRIDGEPORT ROMI EZ PATH SD CNC LATHE
EQUIPPED WITH:
Bridgeport BPCT CNC Control,
Dual Electronic Handwheel Controls,
Teach Mode,
Inch/Metric Threading,
8″ 3-Jaw Chuck,
Manual Tailstock,
Geared Headstock,
Central Automatic Lube System,
Coolant System w/ Chip Pan.
CATALOG SPECIFICATIONS:
Max Swing Over Ways………………………………… 18″
Max Swing Over Cross Slide………………………….. 8″
Distance Between Centers……………………………. 40″
Standard Chuck Diameter…………………………….. 8″
Cross Travel (X-Axis)………………………………. 8.6″
Longitudinal Travel (Z-Axis)………………………… 40″
Rapid Traverse Rate (X-Axis)………………………… 295 IPM
Rapid Traverse Rate (Z-Axis)………………………… 394 IPM
Spindle Nose………………………………………. A2-5
Spindle Bore………………………………………. 2.08″
Spindle Speed Range………………………………… 25-4000 RPM
Spindle Drive Motor………………………………… 7-1/2 HP
Tailstock Quill Taper………………………………. #4 MT
Tailstock Quill Travel……………………………… 4.7″
Approximate Machine Dimensions………………………. 100″ x 54″
Approximate Machine Height………………………….. 84″
Approximate Machine Weight………………………….. 4,900 lbs.
240 Volt
